| High Reliability | FON applies stringent quality control standards on every production process. With proper lubrication and use, trouble-free operation for an extended period of time is possible. |
| Smooth Operation | The high efficiency of ball screw is vastly superior than conventional screws as shown in Fig 1.1.1. It takes less than 30% torque to make the linear motion into rotary motion. |
| High Rigidity and Preload | As figure 1.1.2 shown in below, the ball screw of FON is designed with Gothic arch groove, which makes the screw easy to rotate even using minimum axial play. To make the rigidity more appropriate to using condition, you can change the preload between one or two screw nuts to reduce axial play. |
| High Durability | As figure 1.1.2 shown in below, the ball screw of FON is designed with Gothic arch groove, which makes the screw easy to rotate even using minimum axial play. To make the rigidity more appropriate to using condition, you can change the preload between one or two screw nuts to reduce axial play. |

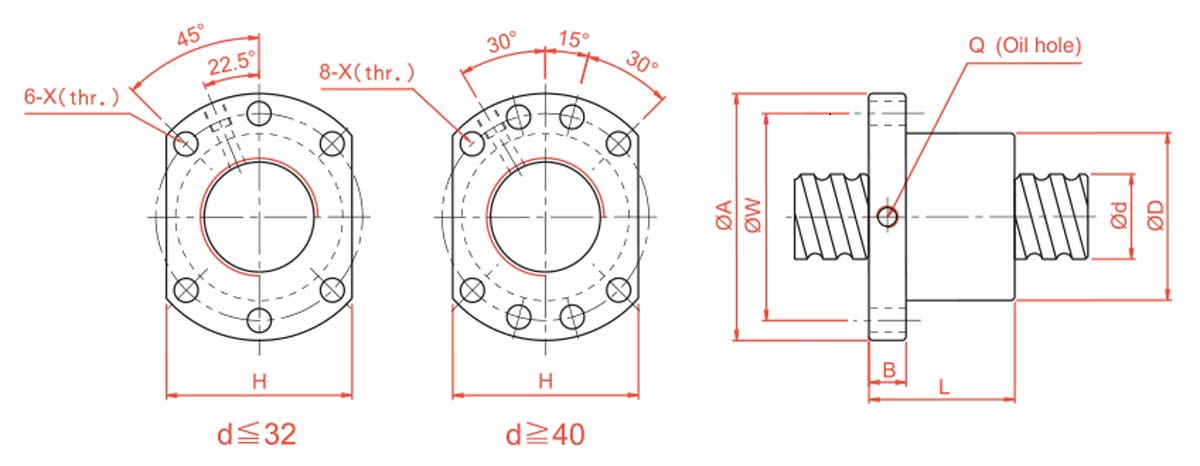

| Model No | d | i | Da | Dimension | Loading rating | K kgf/μm |
|||||||||
| D | A | B | L | W | H | X | Q | n | Ca(kgf) | Coa(kgf) | |||||
| SFU1605-4 | 16 | 5 | 3.175 | 28 | 48 | 10 | 45 | 38 | 40 | 5.5 | M6 | 1X4 | 1380 | 3052 | 32 |
