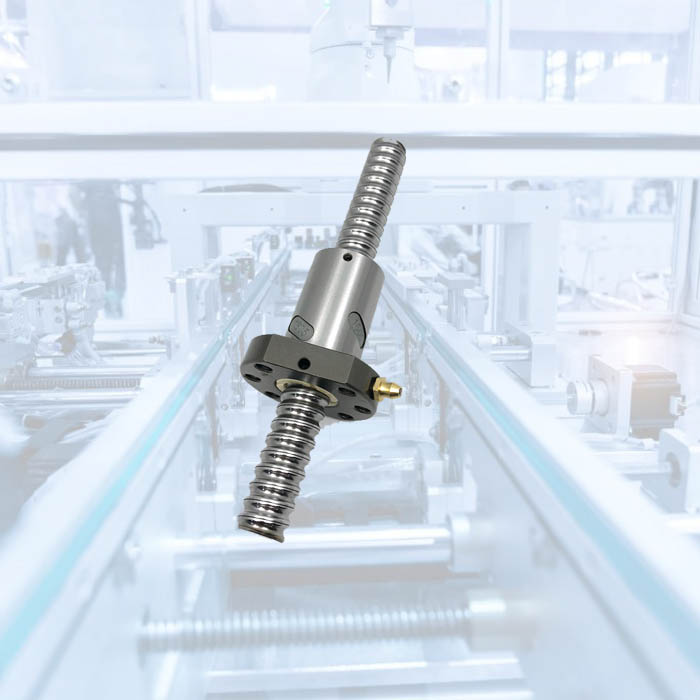

sfu1605

sfu1605

Features of ballscrew

(1) High Reliability
FON applies stringent quality control standards on every production process. With proper lubrication and use, trouble-free operation for an extended period of time is possible.
(2) Smooth Operation
The high efficiency of ball screw is vastly superior than conventional screws as shown in Fig 1.1.1. It takes less than 30% torque to make the linear motion into rotary motion.
(3) High Rigidity and Preload
As figure 1.1.2 shown in below, the ball screw of FON is designed with Gothic arch groove, which makes the screw easy to rotate even using minimum axial play. To make the rigidity more appropriate to using condition, you can change the preload between one or two screw nuts to reduce axial play.
(4) High Durability
As figure 1.1.2 shown in below, the ball screw of FON is designed with Gothic arch groove, which makes the screw easy to rotate even using minimum axial play. To make the rigidity more appropriate to using condition, you can change the preload between one or two screw nuts to reduce axial play.

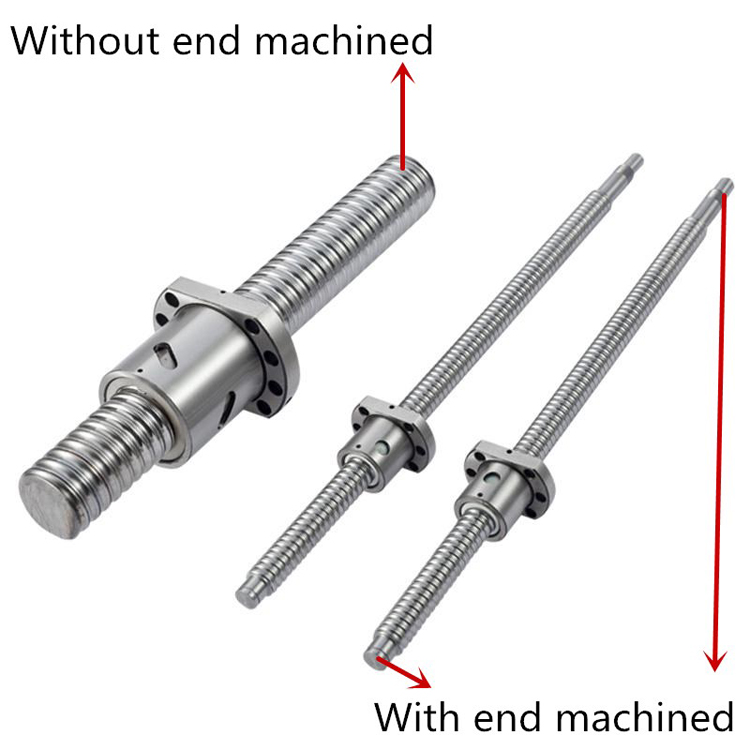

With or without end machined

Datasheet of ballscrew

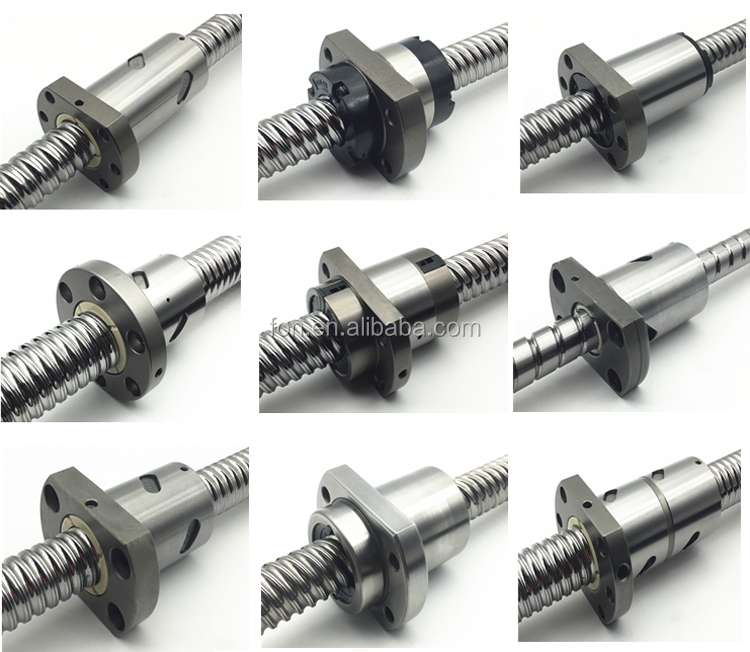

We can supply following type of ball screw nut

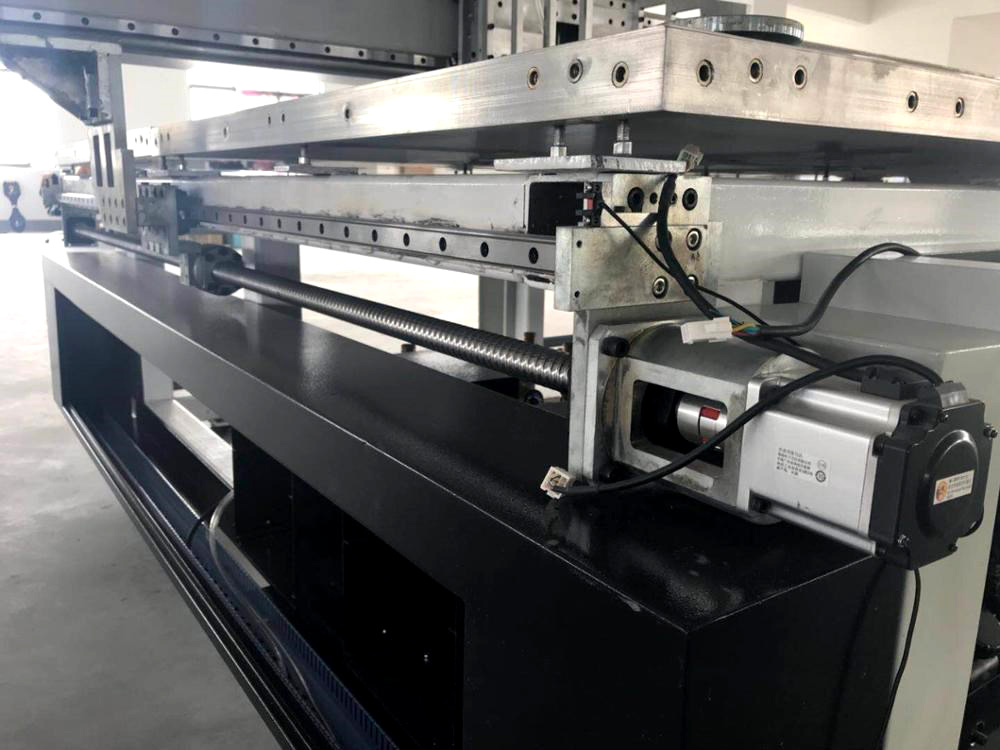

Successful case

Myanmar customer successful case in printer.

Other application

CNC machinery, precision machine tools,

industrial machinery, electronic machinery,

conveyor machinery, aerospace industry,

actuators used in other antennas,

valve switching devices, etc.
