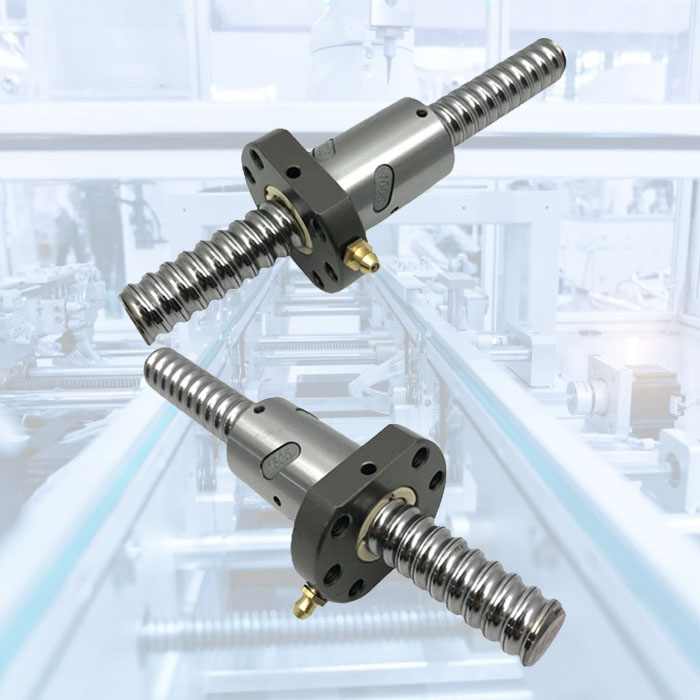

Ball screw are used in aircraft and missiles to moving control surfaces,especially for electric fly by wire and in automobile power steering to translate rotary motion from an electric motor to axial motion of the steering rack . Ball screws also used in machine tools ,robots and precision assembly equipment .High precision ball screws are used in steppers for semiconductors manufacturing.
Diameter: 12mm,16mm,20mm,25mm,32mm,40mm,50mm,63mm,80mm

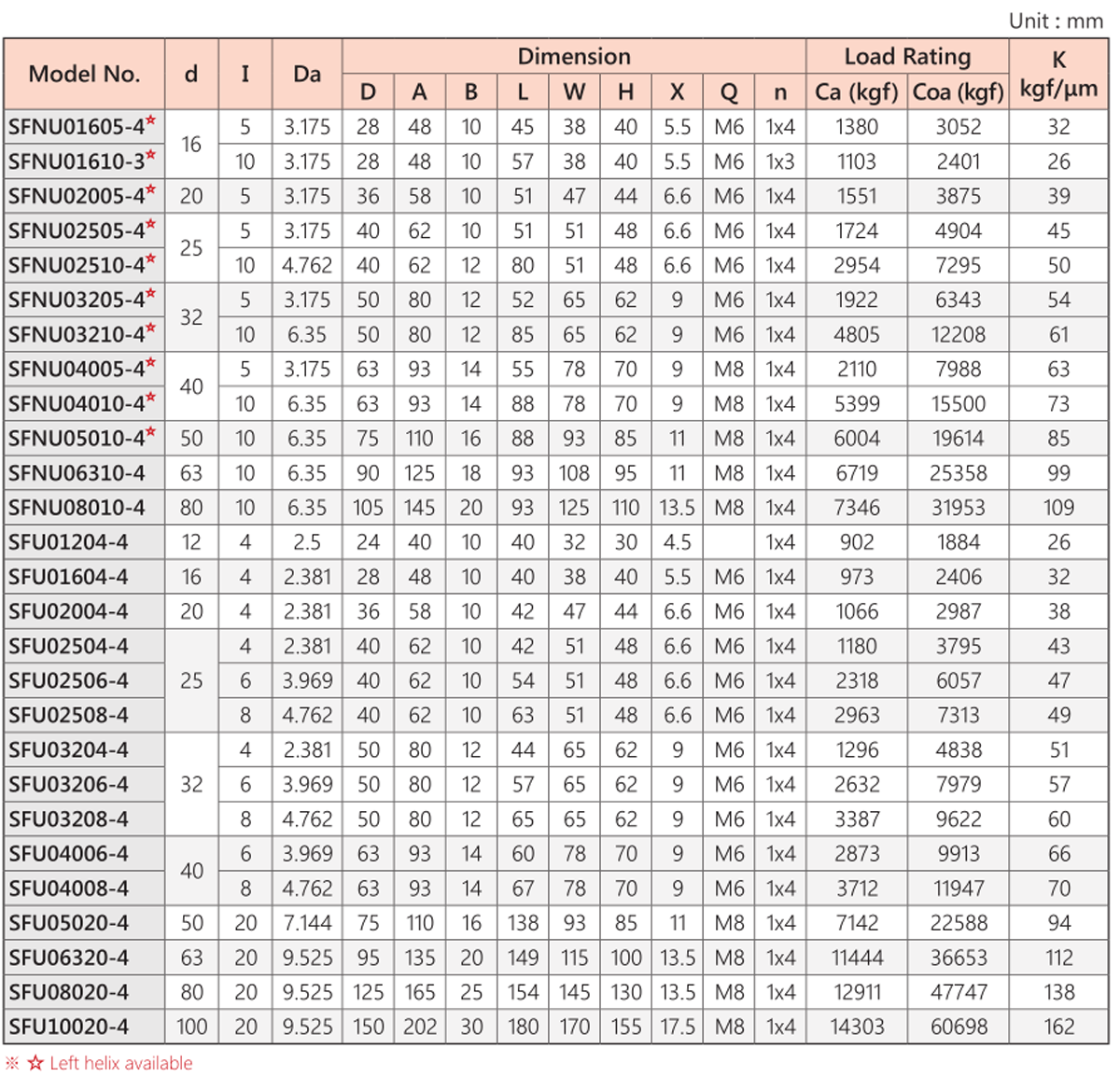

Standard Model : SFU1204/1605/1610/2005/2010/2505/2510/3205/3210/4005/4010/5005/5010/5020/6310/6320/8010/8020
Certification: ISO9001, SGS, CTI, ROHS
Pitch
pitch 4mm: SFU1204,
pitch 5mm: SFU1605, SFU2005, SFU2505, SFU3205, SFU4005, SFU5005
pitch 10mm: SFU1610, SFU2010, SFU2510, SFU3210, SFU4010, SFU5010, SFU6310,
| Product Name | ball screw sfu |
| Material | Ball screw: GCR15,ball nut:20crmo |
| Hardness | HRC58-62 |
| Grade | C7,C5,C3 |
| Standard/Non-standards | SFU/DFU/SFY/SFE/SFK:OEM is available, according to drawing or samples |
| Delivery time | 3 days for sample order, 7~15 days for bulk order |
| Length | 100mm-6000mm,can be customized according to customers requirement |
| Application | CNC machine , 3D printing machinery, chemical machinery, woodworking machinery, engraving machines, window machines,high speed machinery ,Semi-conductor Equipment,robot, railways, automation applicationand etc |
