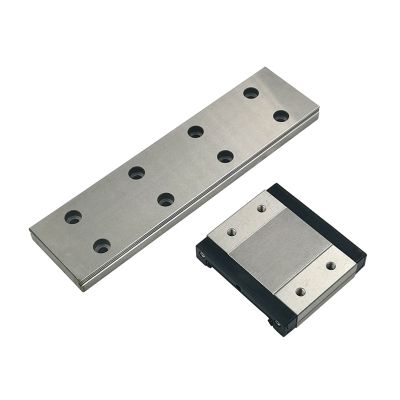

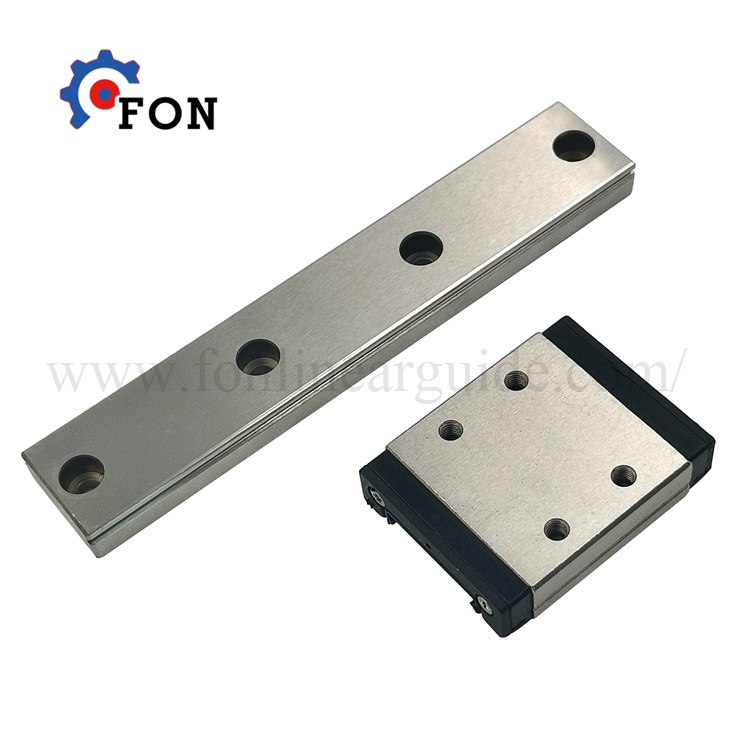

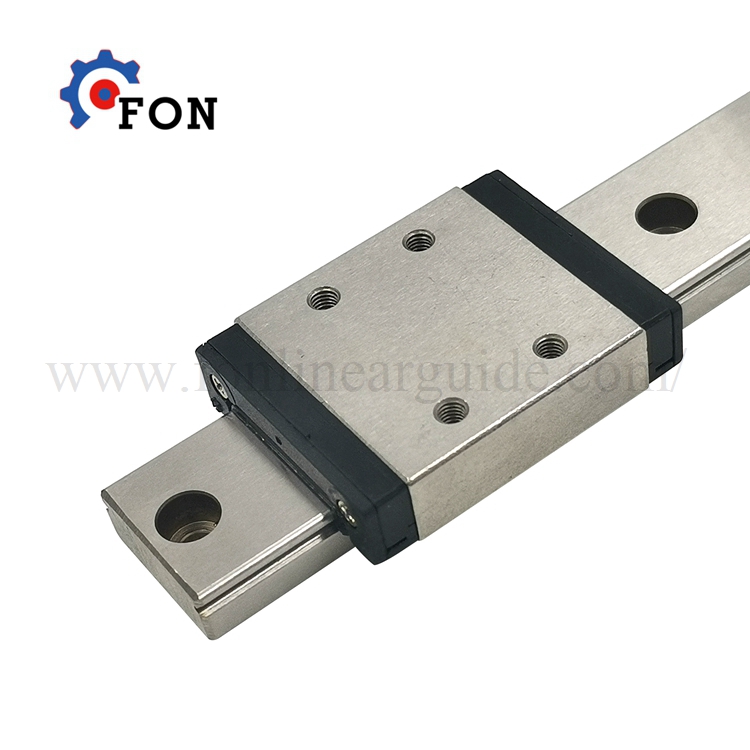

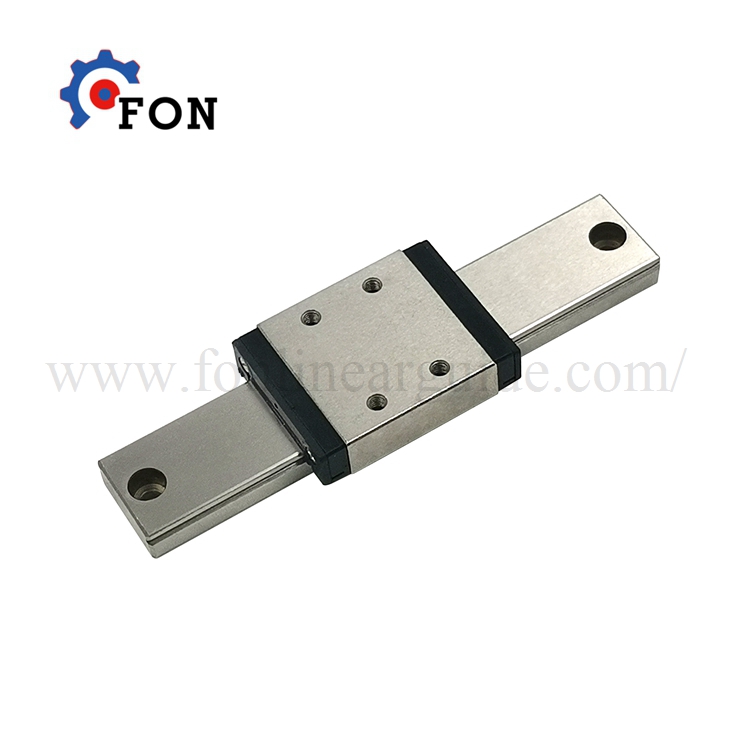

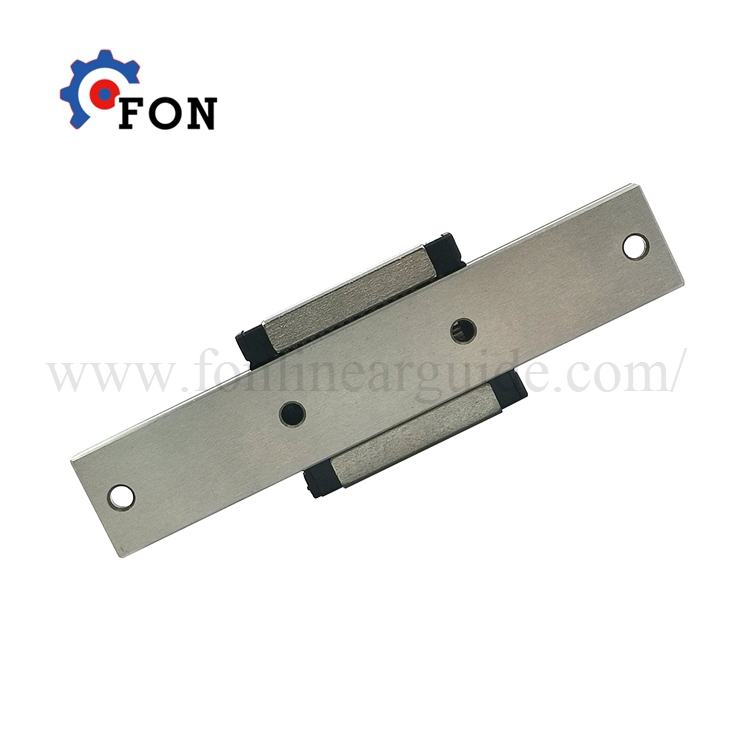

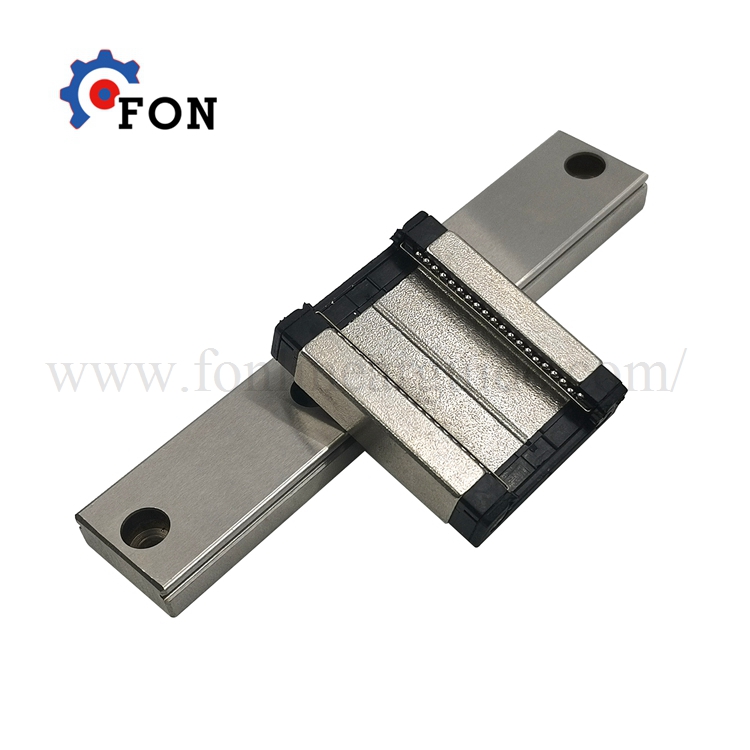

Design feature of wide type miniature guideway-MGW:
The design of enlarged width increases the capacity of moment load.
Gothic arch contact design has high rigidity characteristic in all directions.
Steel balls will be held by miniature retainer to avoid the balls from falling out even when the block are removed from the rail installation.
All metallic components are made of stainless steel for anti-corrosion purpose.

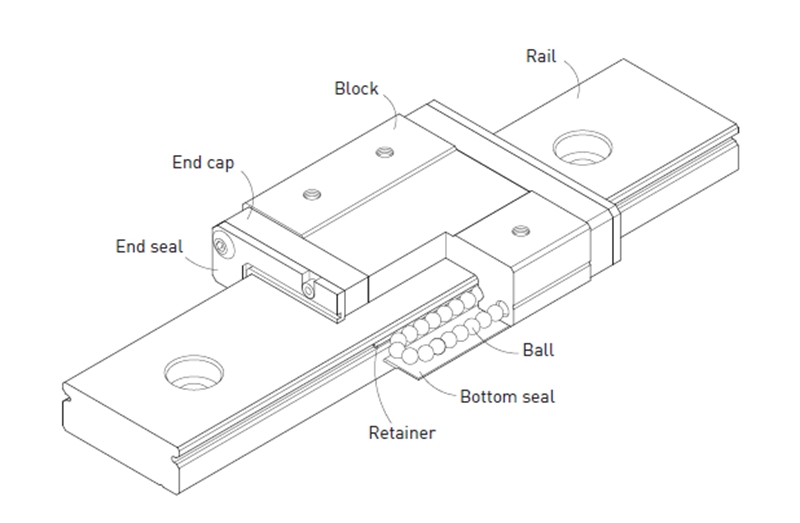

Rolling circulation system: Block, rail, end cap and retainer
Lubrication system: Grease nipple is available for MGN15, lubricated by grease gun.
Dust protection system: End seal, bottom seal (optional size 9,12,15), cap (size12,15)
MGN/MGW series is available for various applications, such as semiconductor equipments, PCB /IC equipments, medication, robotics, measuring equipments, automation equipments, and other miniature sliding machinery.

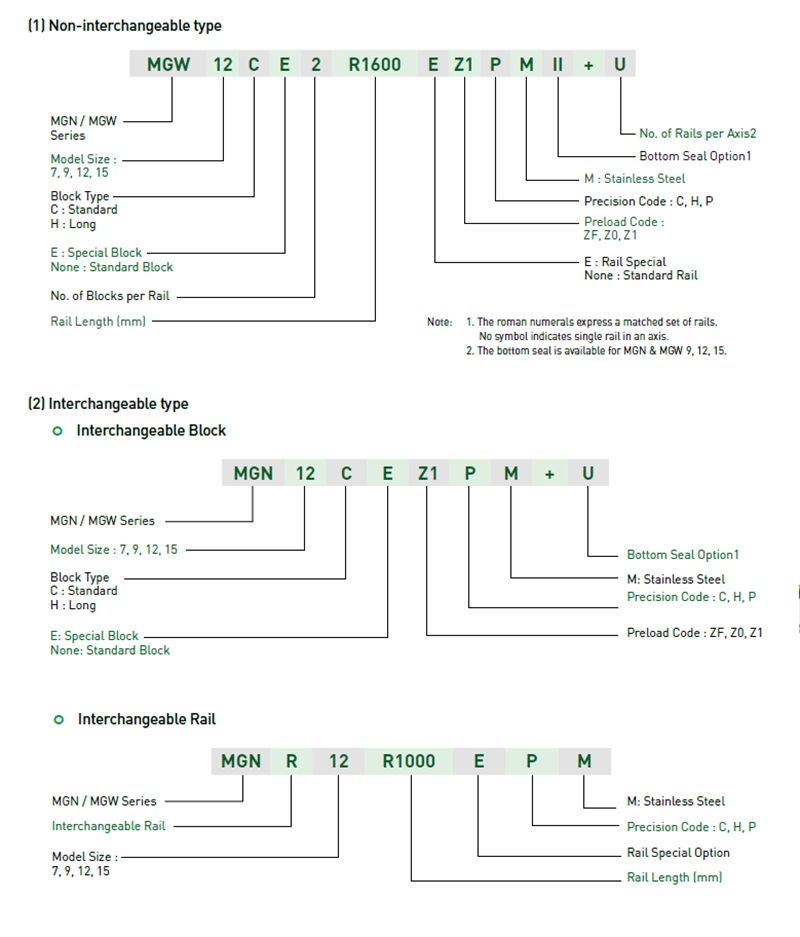

MGN and MGW series linear guideway can be classified into non interchangeable and interchangeable types, which are the same size.The interchangeable type is more convenient due to replaceable rails; however, the precision is less than non-interchangeable type. With strict dimension and quality control, the interchangeable type linear guideways would be a rather suitable choice for customers when rails don’t need to be paired. The model number contains information of the size, type, accuracy, preload, and so on.
