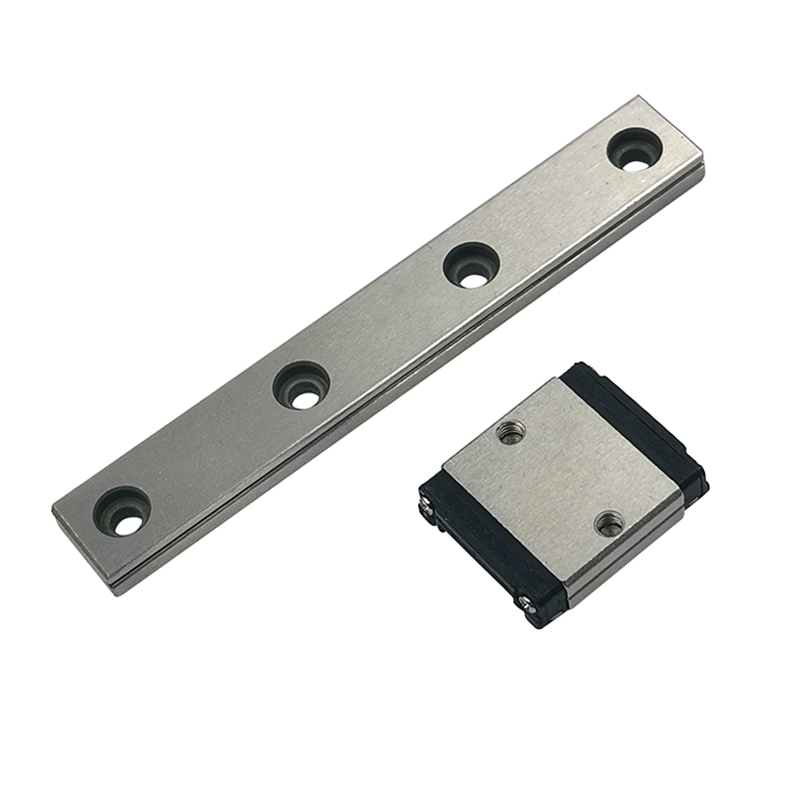

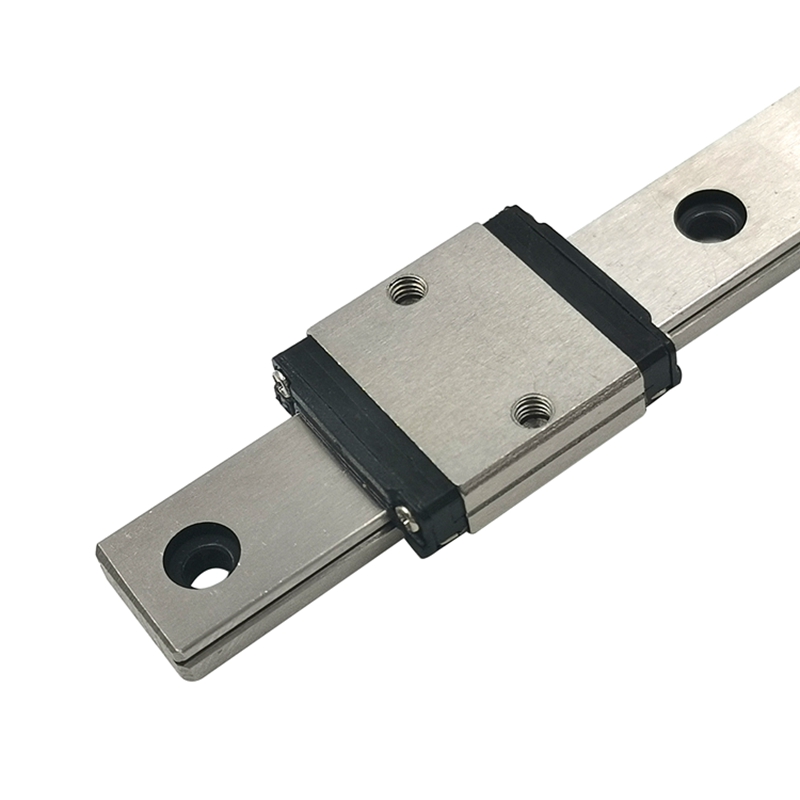

Product name:linear rail guide rail MGW5C
Series:MGW
Size:5
Block No:MGW5C, MGW5CZFC, MGW5CZ0C, MGW5CZ0H, MGW5CZ1C, MGW5CZ1H
Block Type: Standard
Block preload:Light Clearance(ZF), Very Light Preload（Z0), Light Preload (Z1)
Precision code/Accuracy Classes: C,H

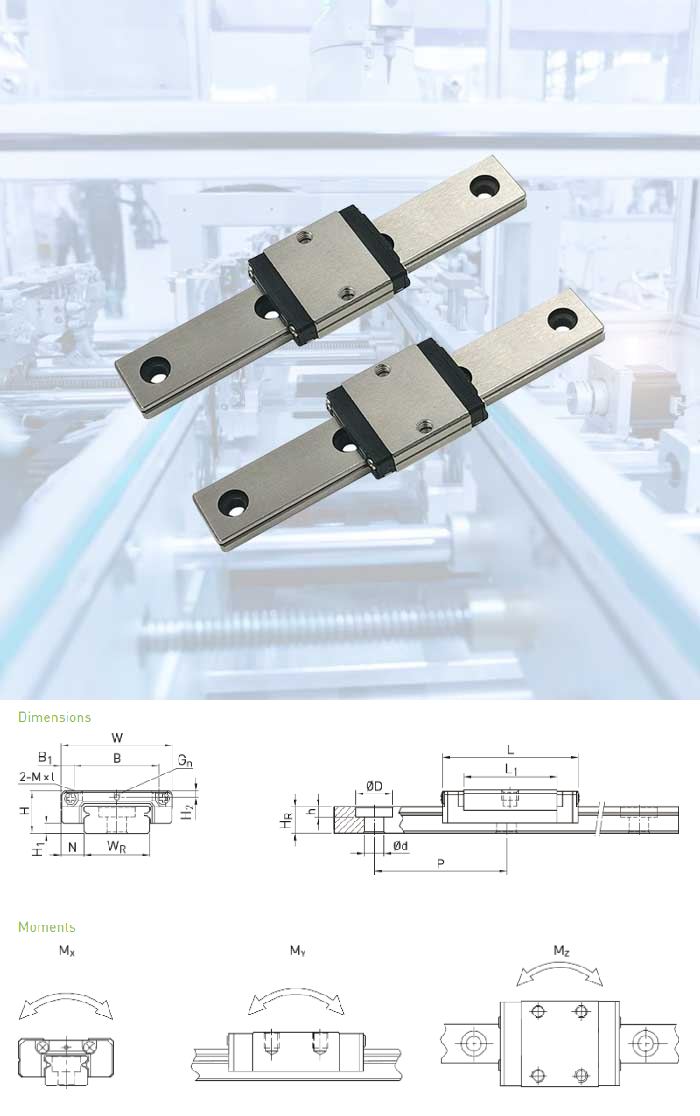

| H | Total height | 6.5 | mm |
| H1 | 1.5 | mm | |
| N | 3.5 | mm | |
| W | Block width | 17 | mm |
| B | 13 | mm | |
| B1 | 2 | mm | |
| L1 | 14.1 | mm | |
| L | Block length | 20.5 | mm |
| Gn | Ø0.8 | ||
| M | M2.5 | mm | |
| l | 1.5 | mm | |
| H2 | 1 | mm | |
| Mass | 0.02 | kg |
