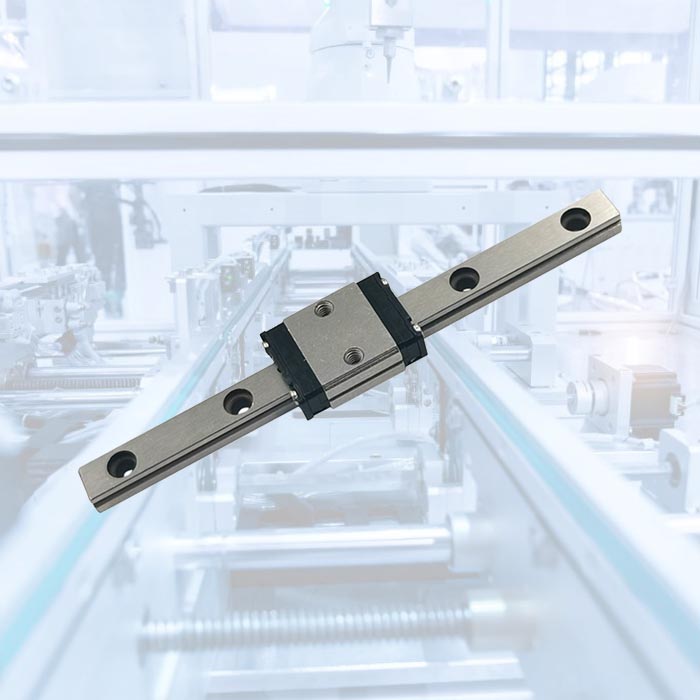

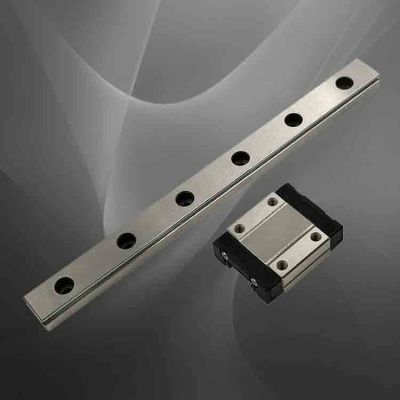

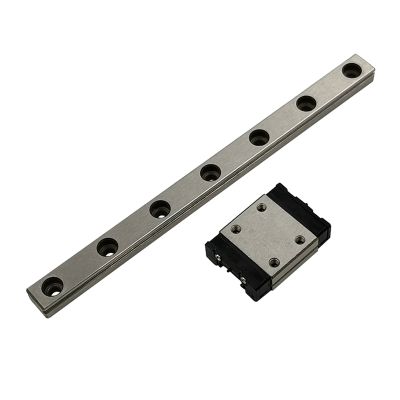

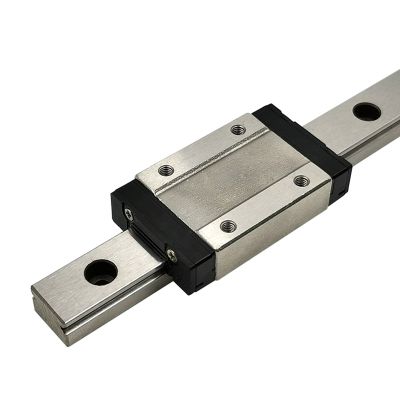

linear motion guide rail mgn5 with block MGN5C
linear motion guide rail mgn5 with block MGN5C

linear motion guide rail mgn5 with block MGN5C

Product Description

MGN-C/MGN-H series

linear motion guide rail mgn5 with block MGN5C

Product name:linear motion guide rail mgn5 with block MGN5C

Series:MGN

Size:5

Block No:MGN5C, MGN5CZFC, MGN5CZ0C, MGN5CZ0H, MGN5CZ1C, MGN5CZ1H

Block Type: Standard

Block preload:Light Clearance(ZF), Very Light Preload(Z0),  Light Preload (Z1)

Precision code/Accuracy Classes: C,H

Class Code Preload Accuracy
Light Clearance ZF Clearance 4~10μm C
Very light preload Z0 0 C-P
Light preload Z1 0.02C C-P

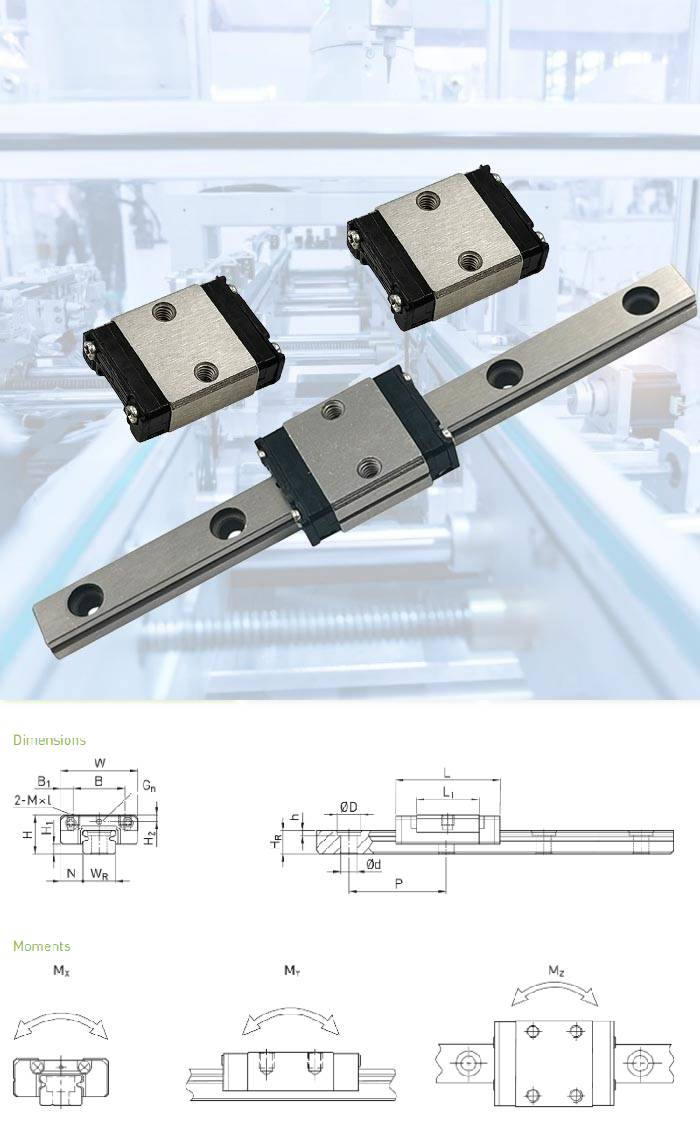

Datasheet of mgn5



H Total height 6 mm
H1   1.5 mm
N   3.5 mm
W Block width 12 mm
B   8 mm
B1   2 mm
L1   9.6 mm
L Block length 16 mm
Gn   Ø0.8
M   M2 mm
l   1.5 mm
H2   1 mm
  Mass 0.008 kg
