Product Description

MGN-C/MGN-H series

linear rail and block MGN12H

Details of MGN12H

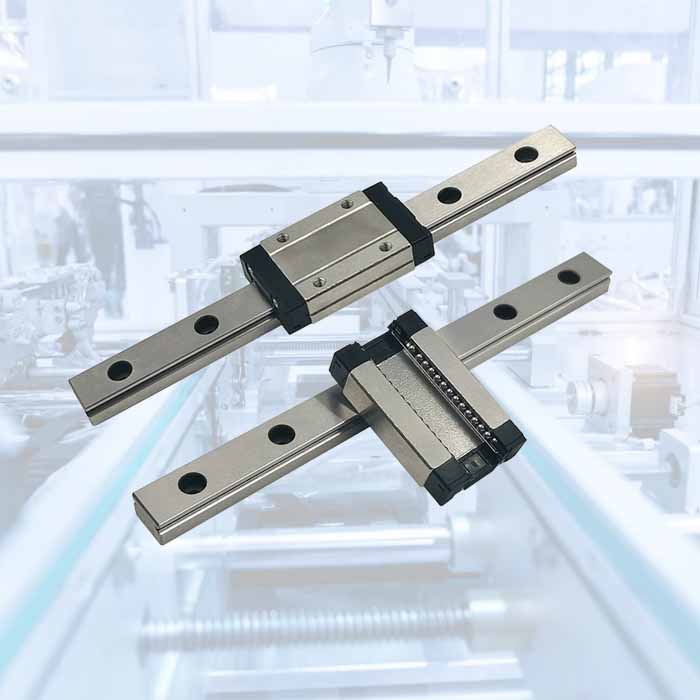

Product name:linear rail and block MGN12H

Series:MGN

Size:12

Block No:MGN12H, MGN12HZFC, MGN12HZ0C, MGN12HZ0H, MGN12HZ1C, MGN12HZ1H

Block Type: Long

Block preload:Light Clearance(ZF), Very Light Preload(Z0),  Light Preload (Z1)

Precision code/Accuracy Classes: C,H

Class Code Preload Accuracy
Light Clearance ZF Clearance 4~10μm C
Very light preload Z0 0 C-P
Light preload Z1 0.02C C-P

Datasheet of MGN12H



H Total height 13 mm
H1   3 mm
H1 With bottom seal 2 mm
N   7.5 mm
W Block width 27 mm
B   20 mm
B1   3.5 mm
C   20
L1   32.4 mm
L Block length 45.5 mm
Gn   Ø2
M   M3 mm
l   3.5 mm
H2   2.5 mm
  Mass 0.05 kg
