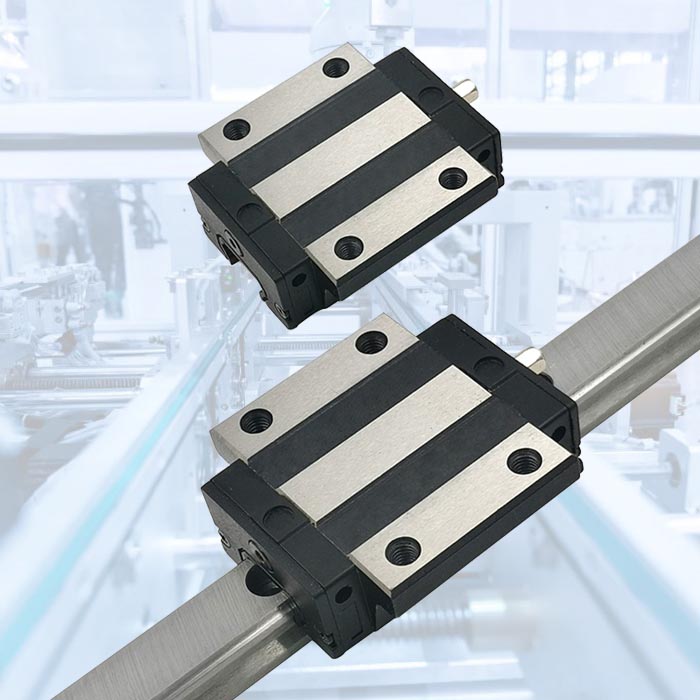

Product name:egw15ca egw20sa egw20ca egw25sa egw20ca egw30sa linear guide block
Part No : EGW15CA, EGW15CAZ0C, EGW15CAZAC, EGW15CAZBC, EGW15CAZ0H, EGW15CAZAH, EGW15CAZBH, EGW20CA, EGW20CAZ0C, EGW20CAZAC, EGW20CAZBC, EGW20CAZ0H, EGW20CAZAH, EGW20CAZBH
Series: EG series
Block Type: Flange type
Model Size : 15,20,25,30 mm
Load Type: Medium load, Heavy load
Block Mounting: Mounting from Top
Block: Standard type block
Preload Class: Very Light Preload (Z0), Light Preload (ZA) , Medium Preload (ZB)
Precision code：C,H

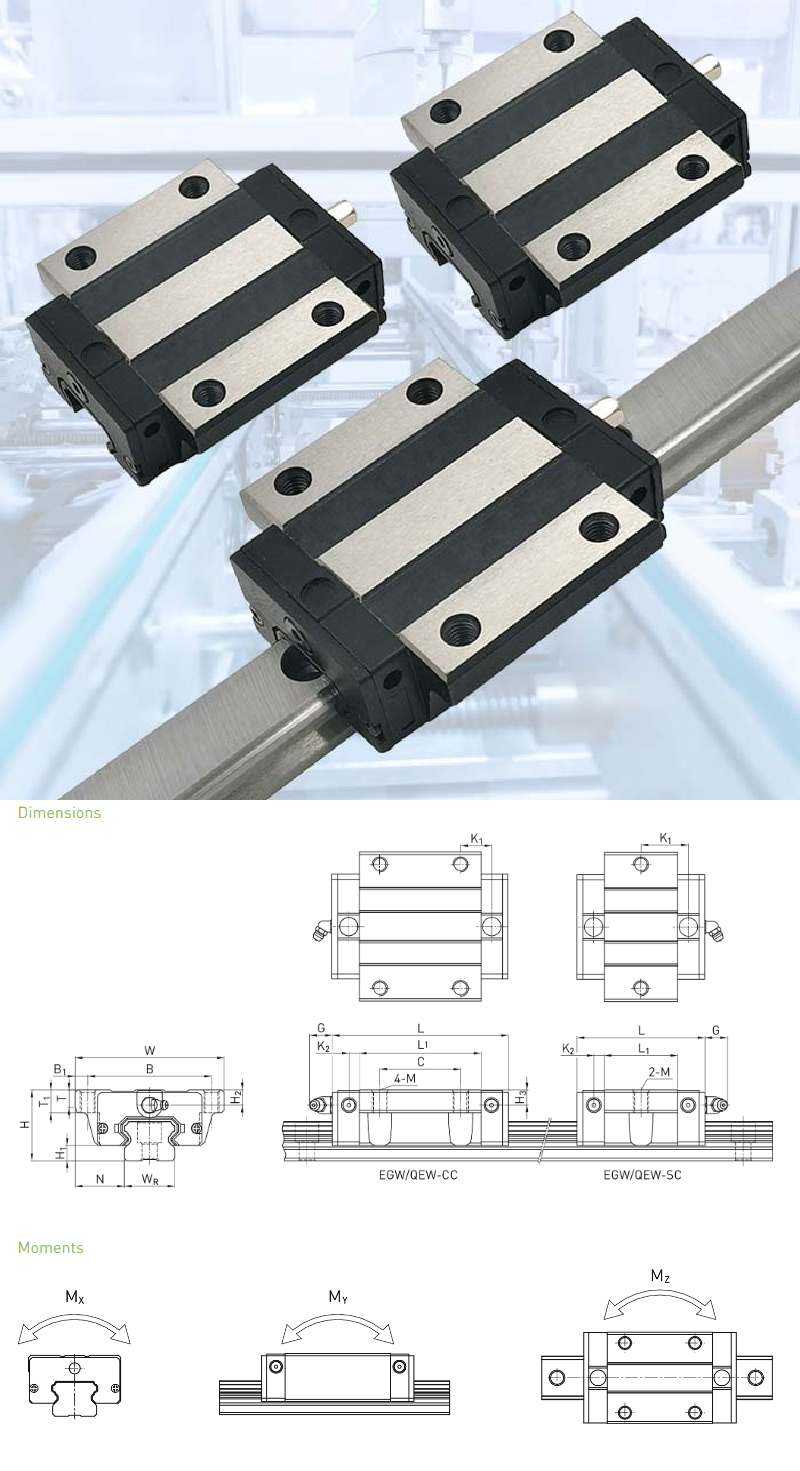

| H | Total height | 24 | mm |
| H1 | 4.5 | mm | |
| N | 18.5 | mm | |
| W | Block width | 52 | mm |
| B | 41 | mm | |
| B1 | 5.5 | mm | |
| L1 | 39.8 | mm | |
| L | Block length | 56.8 | mm |
| K1 | 10.15 | mm | |
| K2 | 3.5 | mm | |
| G | 5.7 | mm | |
| M | M5 | ||
| T | 5 | mm | |
| T1 | 7 | mm | |
| H2 | 5.5 | mm | |
| H3 | 6 | mm | |
| Mass | 0.21 | kg |
| H | Total height | 28 | mm |
| H1 | 6 | mm | |
| N | 19.5 | mm | |
| W | Block width | 59 | mm |
| B | 49 | mm | |
| B1 | 5 | mm | |
| C | 32 | mm | |
| L1 | 49.1 | mm | |
| L | Block length | 69.1 | mm |
| K1 | 12.3 | mm | |
| K2 | 4.15 | mm | |
| G | 12 | mm | |
| M | M6 | ||
| T | 7 | mm | |
| T1 | 9 | mm | |
| H2 | 6 | mm | |
| H3 | 6 | mm | |
| Mass | 0.32 | kg |
