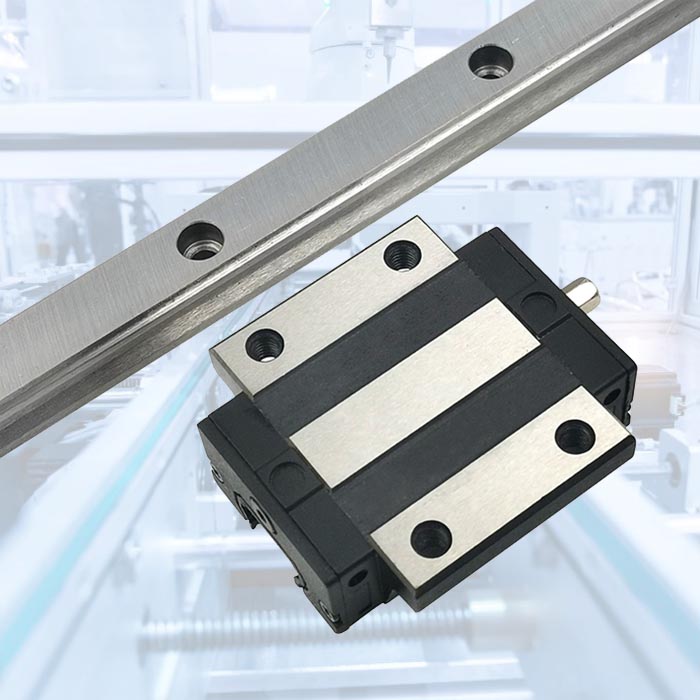

Product name:linear guide rail/linear guideway EGW35CA
Part No : EGW35CA, EGW35CAZ0C, EGW35CAZAC, EGW35CAZBC, EGW35CAZ0H, EGW35CAZAH, EGW35CAZBH
Series: EG series
Block Type: Flange type
Model Size : 35 mm
Load Type: Heavy load
Block Mounting: Mounting from Top
Block: Standard type block
Preload Class: Very Light Preload (Z0), Light Preload (ZA) , Medium Preload (ZB)
Precision code：C,H

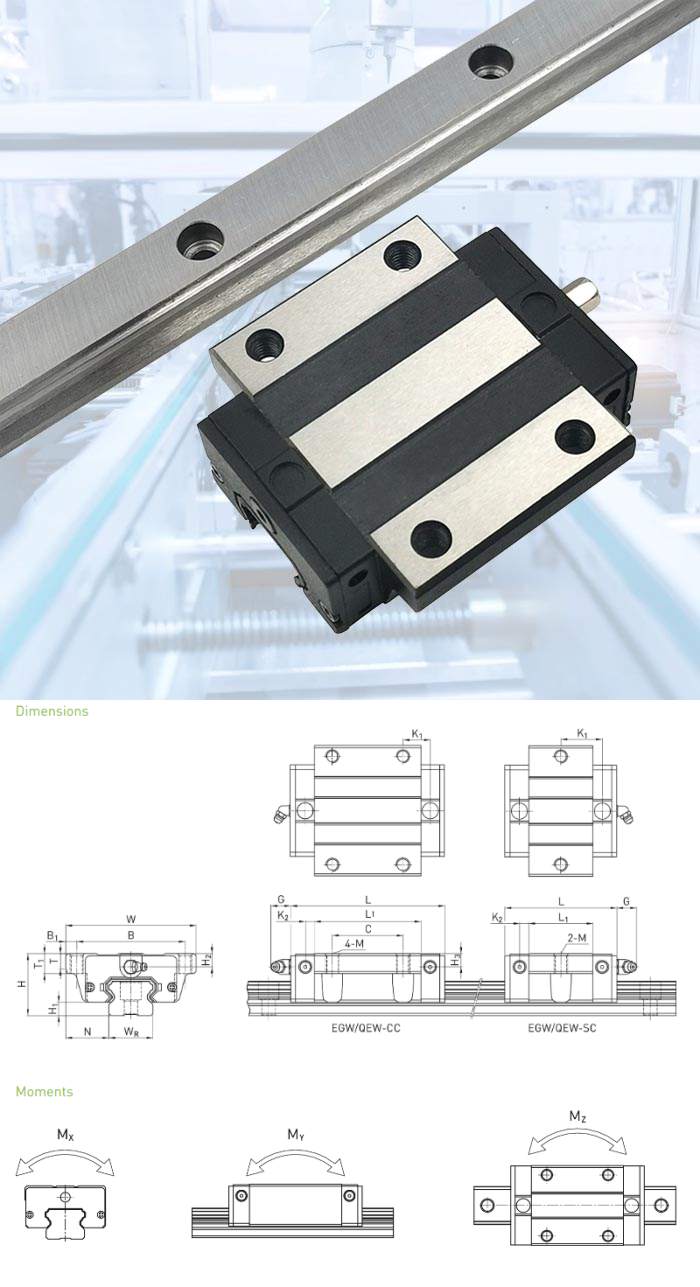

| H | Total height | 48 | mm |
| H1 | 11 | mm | |
| N | 33 | mm | |
| W | Block width | 100 | mm |
| B | 82 | mm | |
| B1 | 9 | mm | |
| C | 50 | mm | |
| L1 | 78 | mm | |
| L | Block length | 108 | mm |
| K1 | 20 | mm | |
| K2 | 7 | mm | |
| G | 12 | mm | |
| M | M10 | ||
| T | 10 | mm | |
| T1 | 13 | mm | |
| H2 | 8.5 | mm | |
| H3 | 8.5 | mm | |
| Mass | 1.4 | kg |
