sfu1204 function

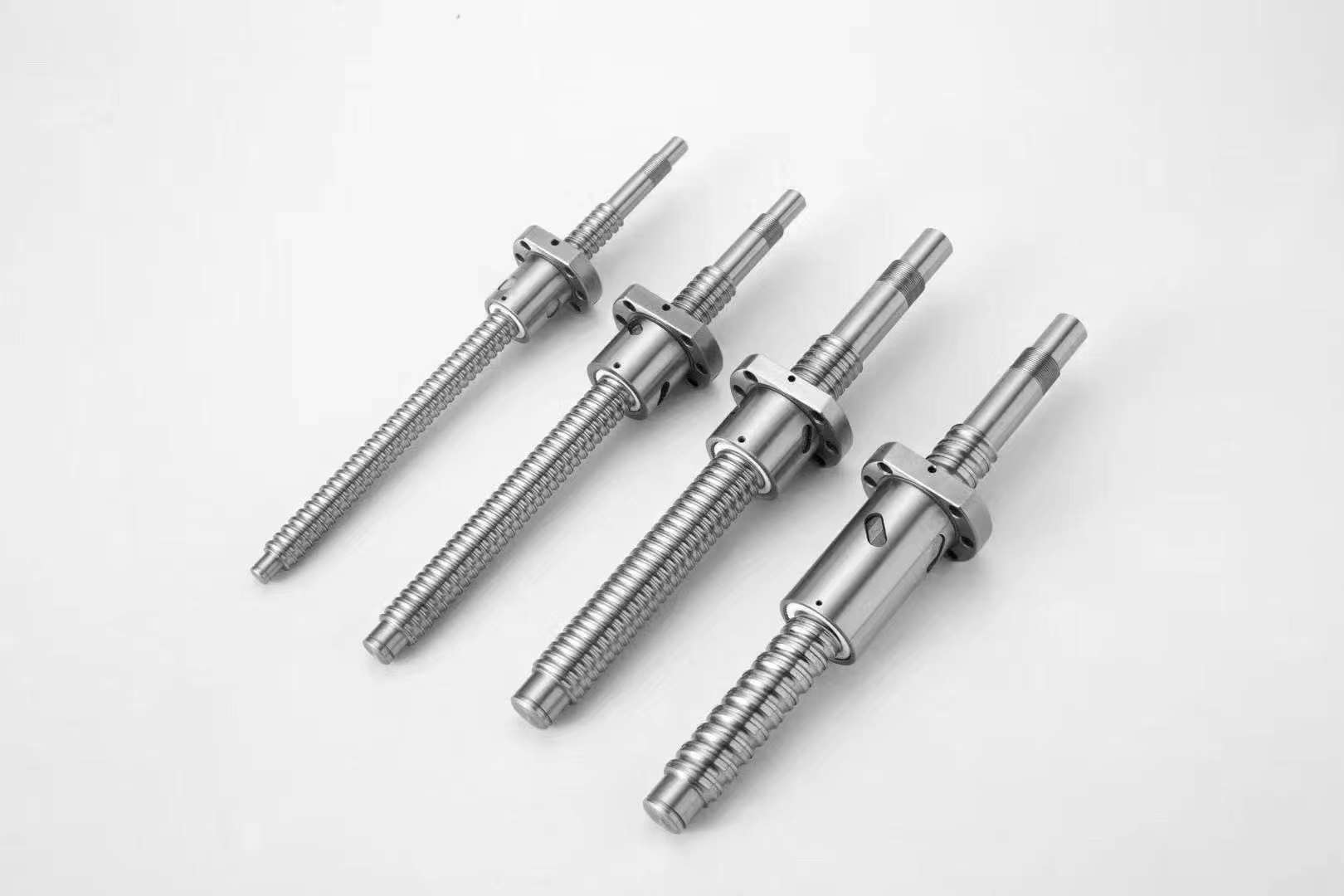

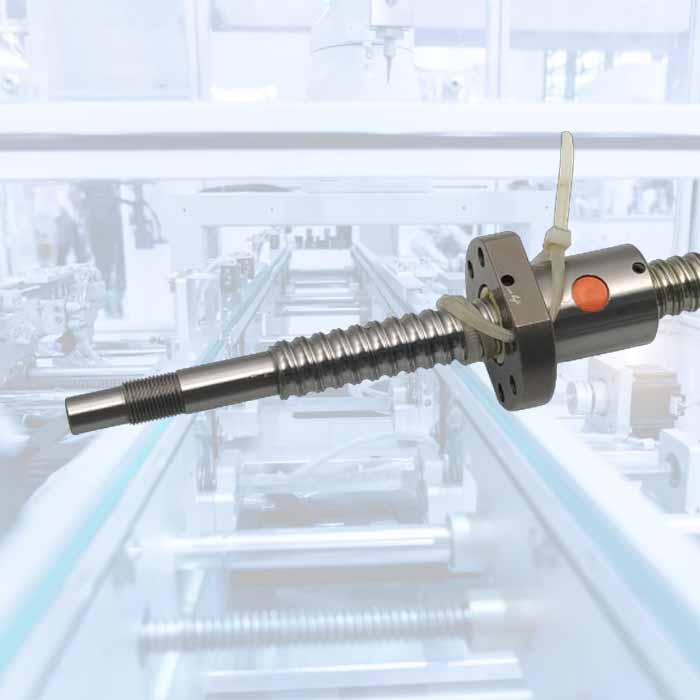

SFU1204 Ball Screw is made of screw and ball nut . It's function is to turn the rotary motion into linear motion.,which is a future extension and development of ball screw. The significance of the development is to move into a rolling bearing from sliding action. With little frication, Ball Screw are widely used into various industrial equipment and precision instruments.
| Model No | d | i | Da | Dimension | Loading rating | K kgf/μm |
|||||||||
| D | A | B | L | W | H | X | Q | n | Ca(kgf) | Coa(kgf) | |||||
| SFU1204-4 | 12 | 4 | 2.5 | 24 | 40 | 10 | 40 | 32 | 30 | 4.5 | 1X4 | 902 | 1884 | 26 | |
