Product Description

Features:

High rigidity, high precision.
Durable and long service life
Specifications:

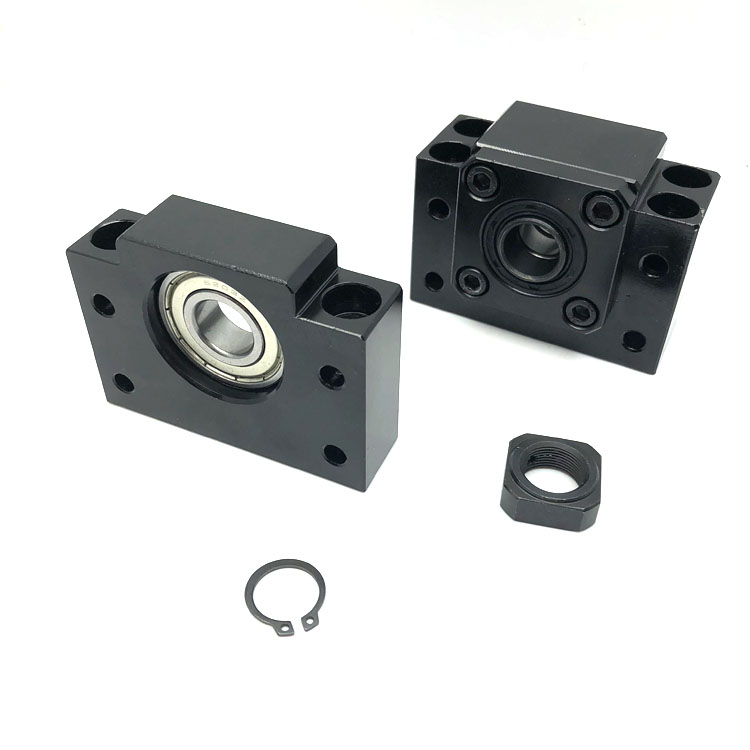

BK12 Fixed Side

Model: BK12
Material: Carbon Steel
Size: 60x43x32.5mm
Color: Black
Weight: 376g
BF12 Float Side

Model: BF12
Material: Carbon Steel
Size: 60x43x20mm
Color: Black
Weight: 266g
Mounting method of ball screw support:

fixed to the threaded rod on the fixed side.
The fixed side inserted, tightening the lock nut, fixed with the cushion block and the inner six angle bolts.
The supporting side bearing is fixed on the threaded rod shaft with a stop ring and is loaded into the bearing block.

Dimensions and suggest dimension of End Machining
