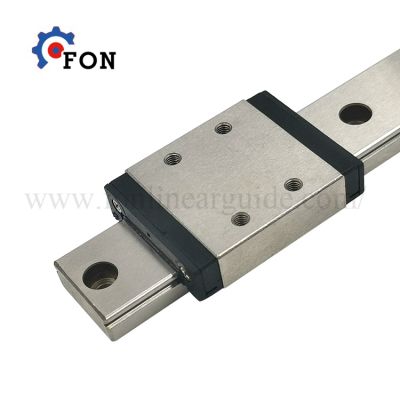

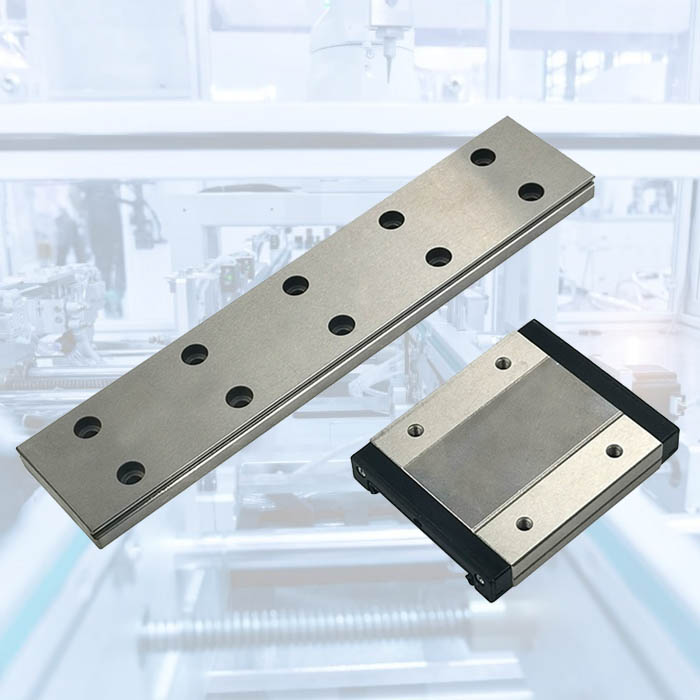

Product name:linear bearing slide blocks MGW15H
Series:MGW
Size:15
Block No:MGW15H, MGW15HZFC, MGW15HZ0C, MGW15HZ0H, MGW15HZ1C, MGW15HZ1H
Block Type: Long
Block preload:Light Clearance(ZF), Very Light Preload（Z0), Light Preload (Z1)
Precision code/Accuracy Classes: C,H

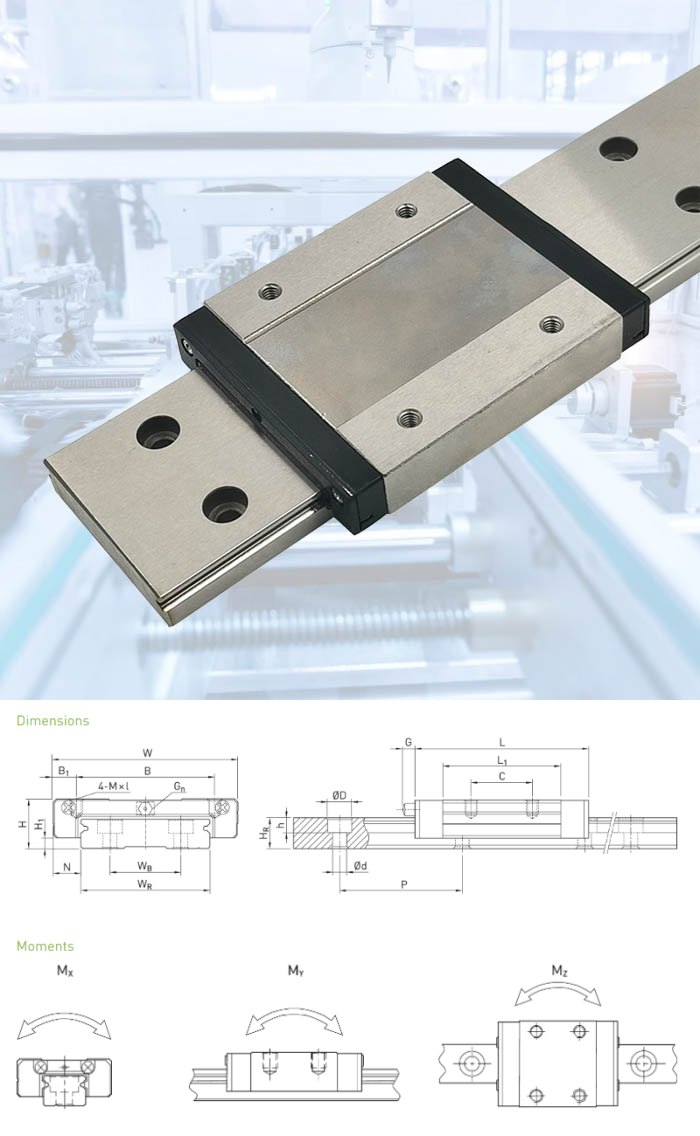

| H | Total height | 16 | mm |
| H1 | 3.4 | mm | |
| H1 | With bottom seal | 2.6 | mm |
| N | 9 | mm | |
| W | Block width | 60 | mm |
| B | 45 | mm | |
| B1 | 7.5 | mm | |
| C | 35 | ||
| L1 | 57 | mm | |
| L | Block length | 73.8 | mm |
| G | 5.2 | mm | |
| Gn | M3 | mm | |
| M | M4 | ||
| l | 4.2 | mm | |
| H2 | 3.2 | mm | |
| Mass | 0.22 | kg |
