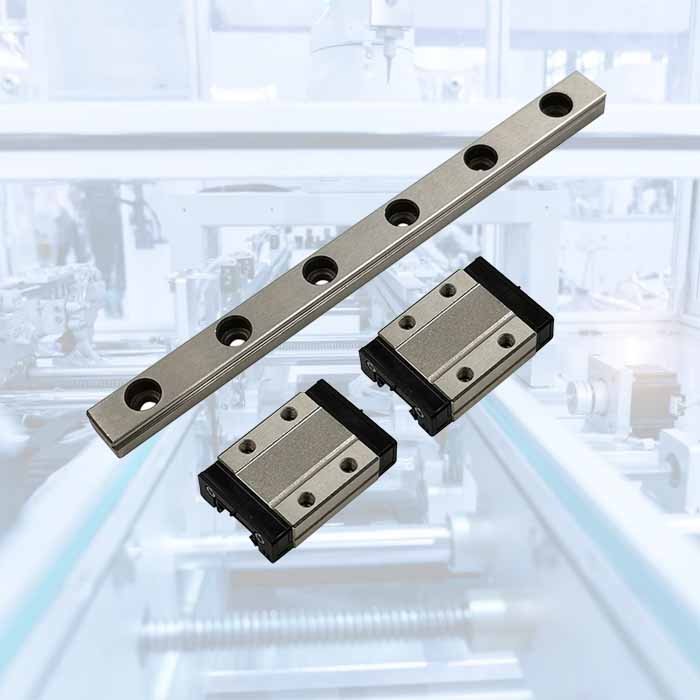

equivalent hiwin linear guides MGN9C
equivalent hiwin linear guides MGN9C

equivalent hiwin linear guides MGN9C

Product Description

MGN-C/MGN-H series

equivalent hiwin linear guides MGN9C

Details of MGN9C

Product name:equivalent hiwin linear guides MGN9C

Series:MGN

Size:9

Block No:MGN9C, MGN9CZFC, MGN9CZ0C, MGN9CZ0H, MGN9CZ1C, MGN9CZ1H

Block Type: Standard

Block preload:Light Clearance(ZF), Very Light Preload(Z0),  Light Preload (Z1)

Precision code/Accuracy Classes: C,H

Class Code Preload Accuracy
Light Clearance ZF Clearance 4~10μm C
Very light preload Z0 0 C-P
Light preload Z1 0.02C C-P

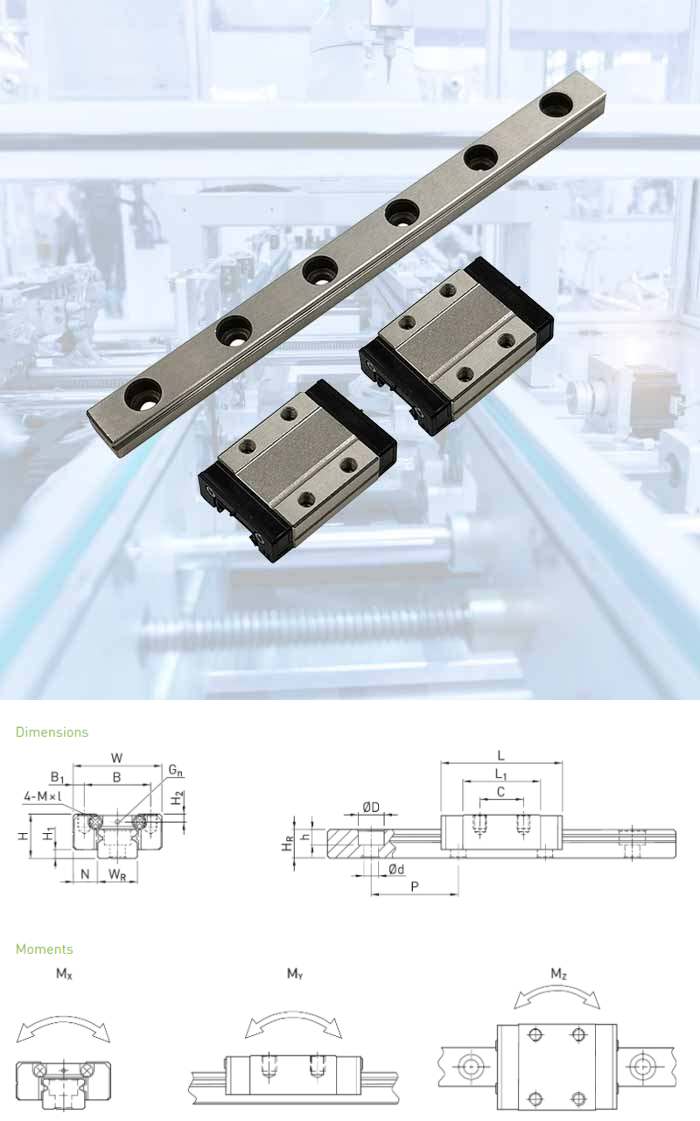

Datasheet of MGN9C



H Total height 10 mm
H1   2 mm
N   5.5 mm
W Block width 20 mm
B   15 mm
B1   2.5 mm
C   10
L1   18.9 mm
L Block length 28.9 mm
Gn   Ø1.4
M   M3 mm
l   3 mm
H2   1.8 mm
  Mass 0.02 kg
