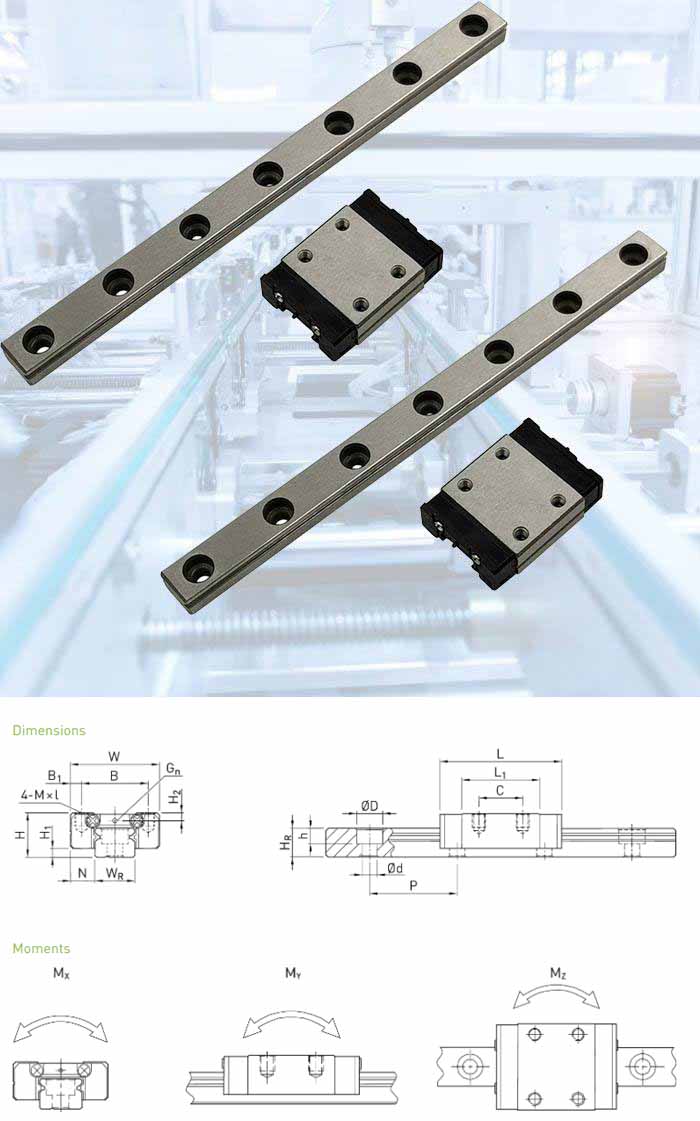

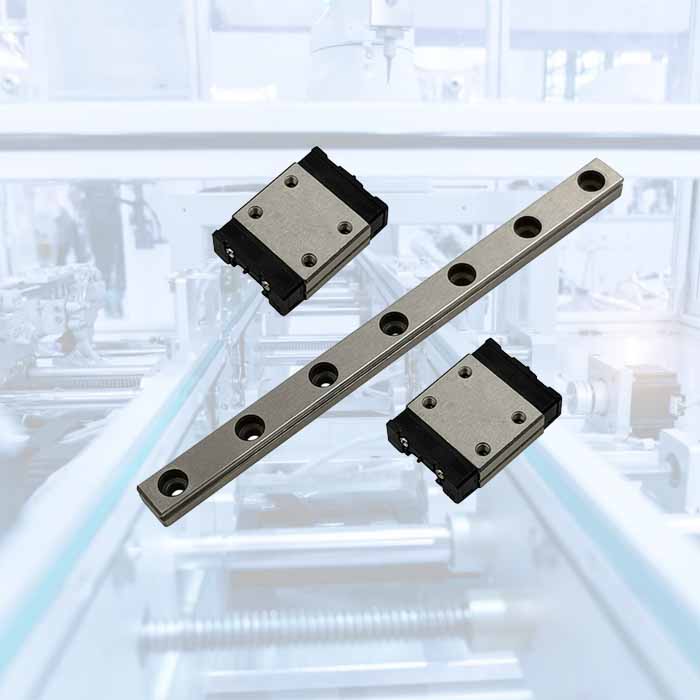

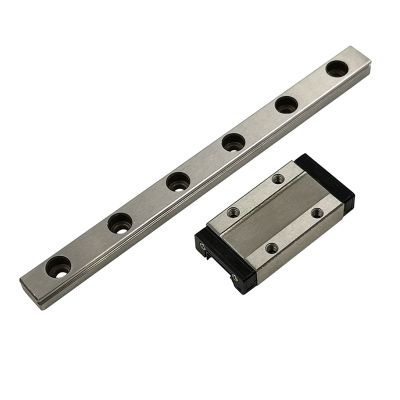

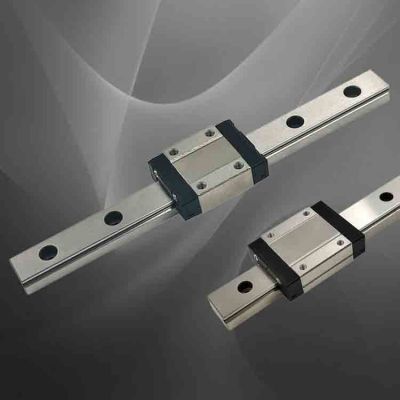

Product name:linear guide rail block MGN7C

Series:MGN

Size:7

Block No:MGN7C, MGN7CZFC, MGN7CZ0C, MGN7CZ0H, MGN7CZ1C, MGN7CZ1H

Block Type: Standard

Block preload:Light Clearance(ZF), Very Light Preload(Z0),  Light Preload (Z1)

Precision code/Accuracy Classes: C,H

Class Code Preload Accuracy
Light Clearance ZF Clearance 4~10μm C
Very light preload Z0 0 C-P
Light preload Z1 0.02C C-P

Datasheet of MGN7C



H Total height 8 mm
H1   1.5 mm
N   5 mm
W Block width 17 mm
B   12 mm
B1   2.5 mm
C   8
L1   13.5 mm
L Block length 22.5 mm
Gn   Ø1.2
M   M2 mm
l   2.5 mm
H2   1.5 mm
  Mass 0.01 kg
