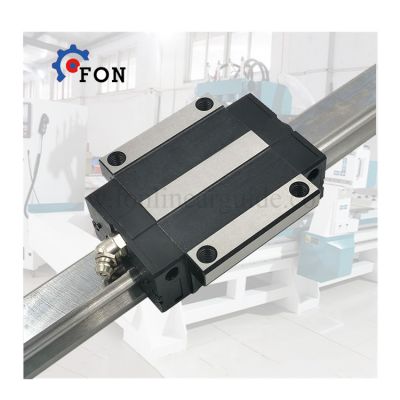

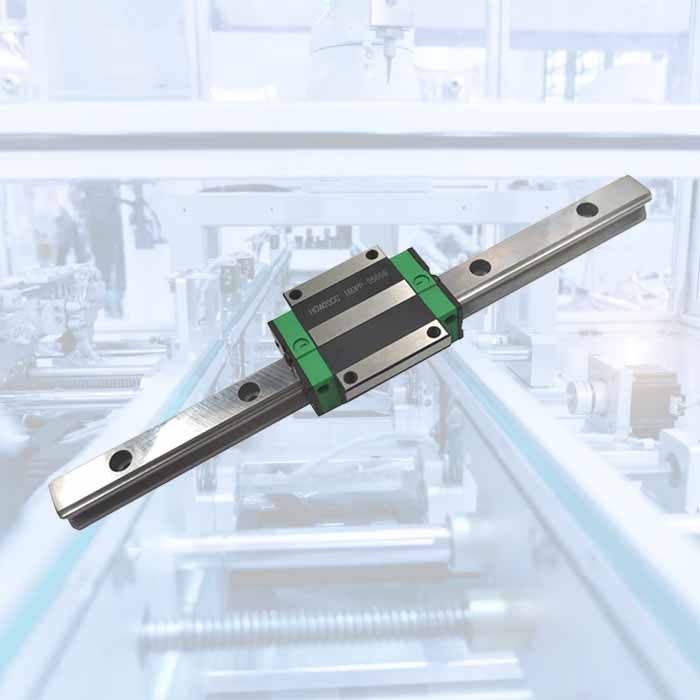

Part No : HGW20CC, HGW20CCA0C, HGW20CCZAC, HGW20CCA0H, HGW20CCZAH
Series: HG series
Block Type: Flange type
Model Size : 20 mm
Load Type: Heavy load
Block Mounting: Mounting from Top
Block: Standard type block
Preload Class: Light Preload , Medium Preload
Precision code：C,H
Dust Protection Standard preotection (End seal and bottom seal)

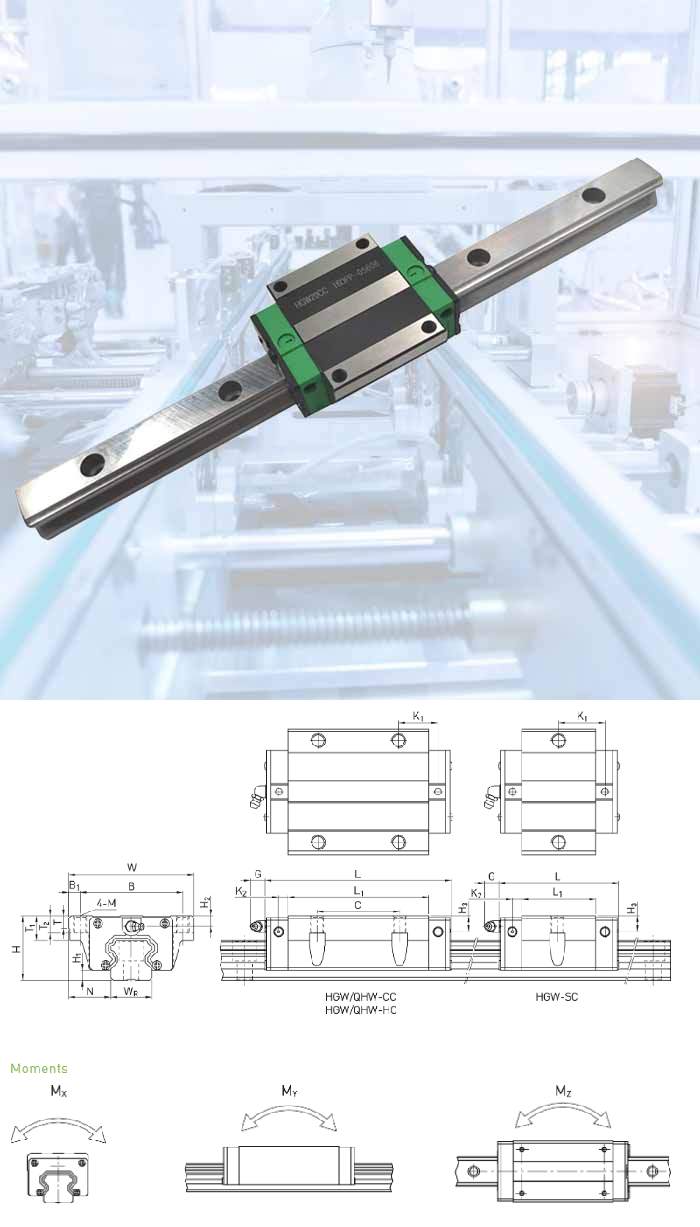

| H | Total height | 30 | mm |
| H1 | 4.6 | mm | |
| N | 21.5 | mm | |
| W | Block width | 63 | mm |
| B | 53 | mm | |
| B1 | 5 | mm | |
| C | 40 | mm | |
| L1 | 50.5 | mm | |
| L | Block length | 77.5 | mm |
| K1 | 10.25 | mm | |
| K2 | 6 | mm | |
| G | 12 | mm | |
| M | M6 | ||
| T | 8 | mm | |
| T1 | 10 | mm | |
| T2 | 9.5 | mm | |
| H2 | 6 | mm | |
| H3 | 6 | mm | |
| Mass | 0.4 | kg |
