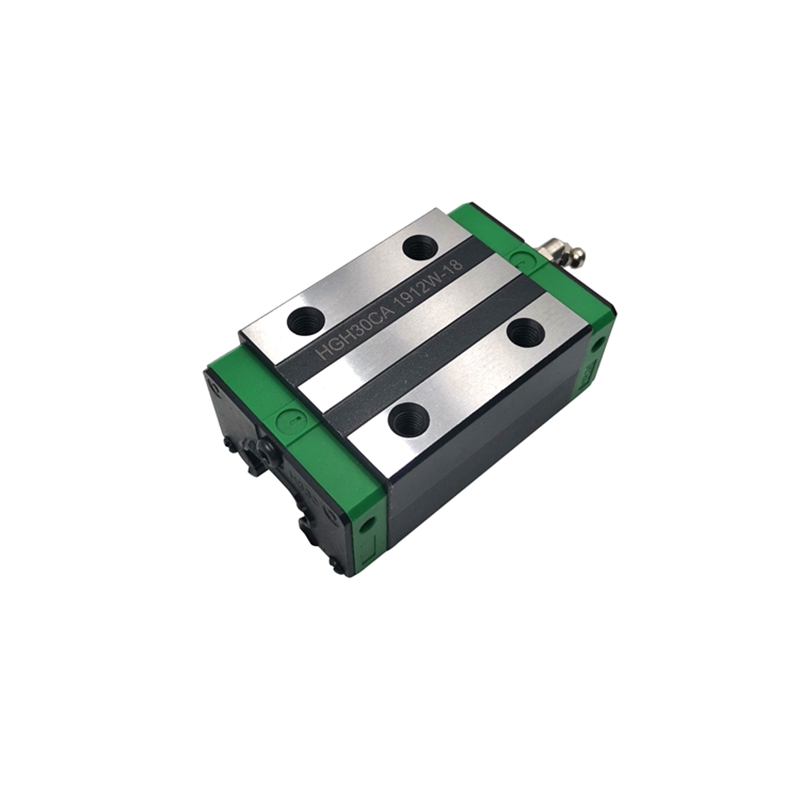

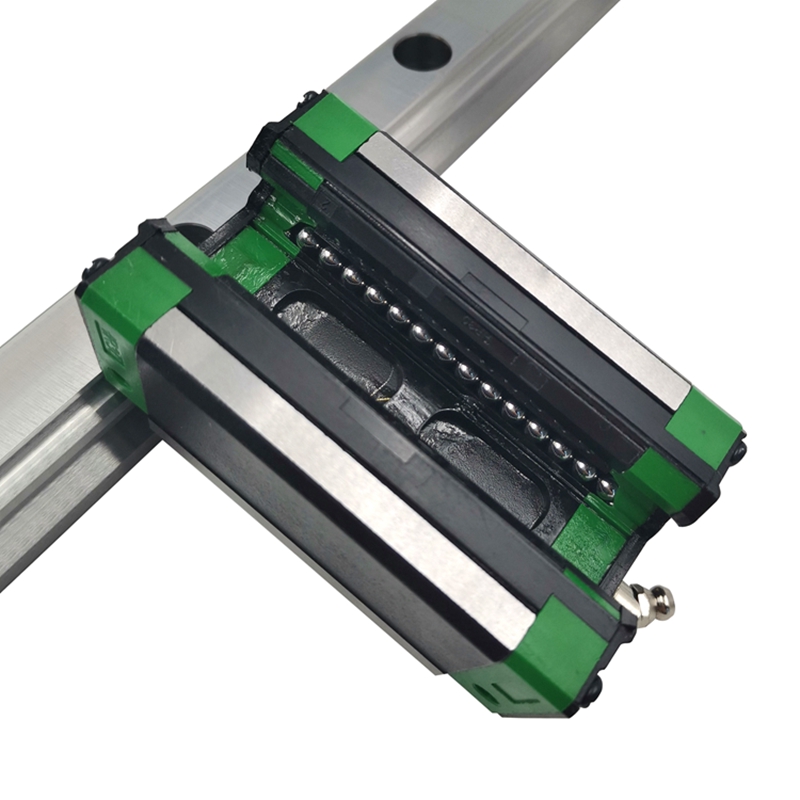

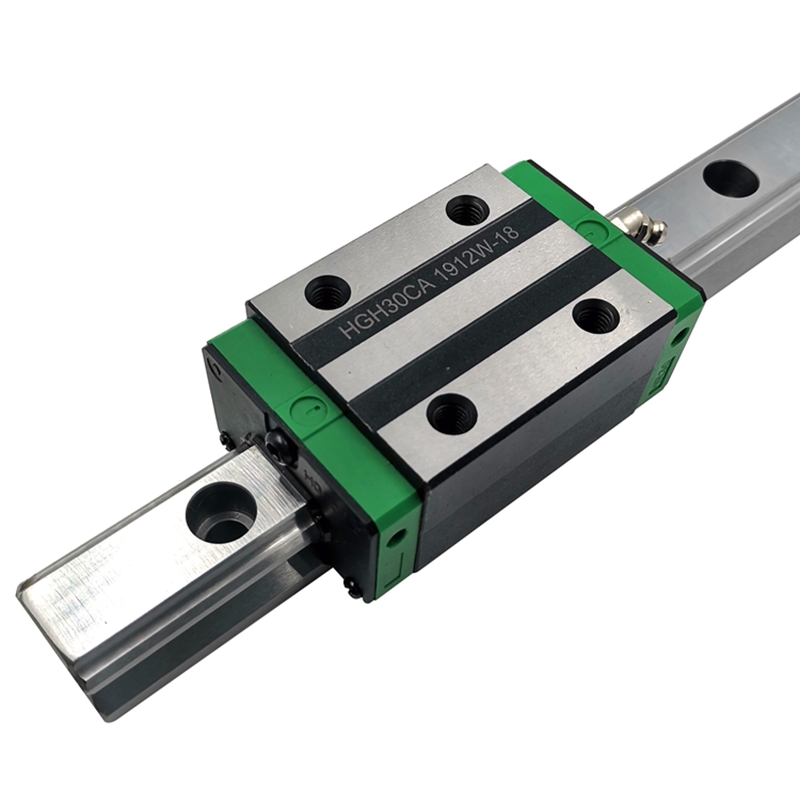

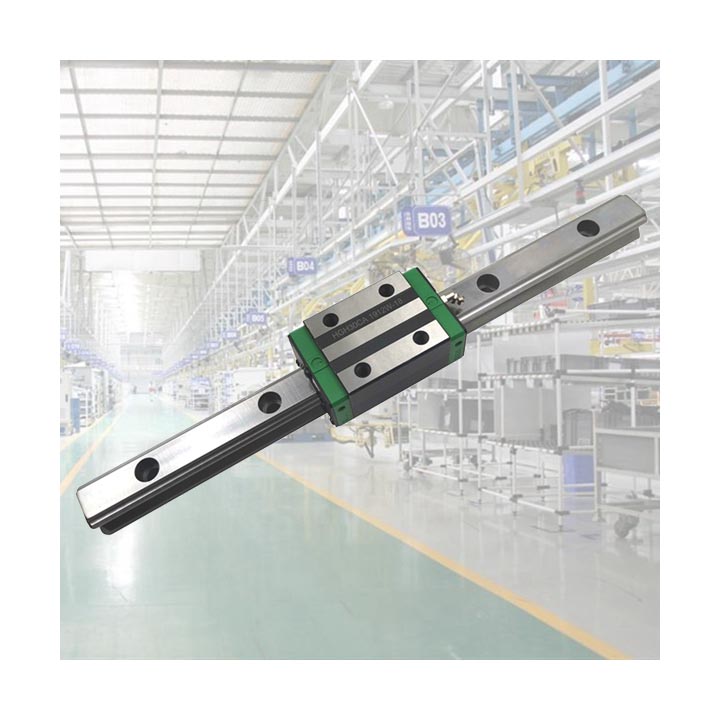

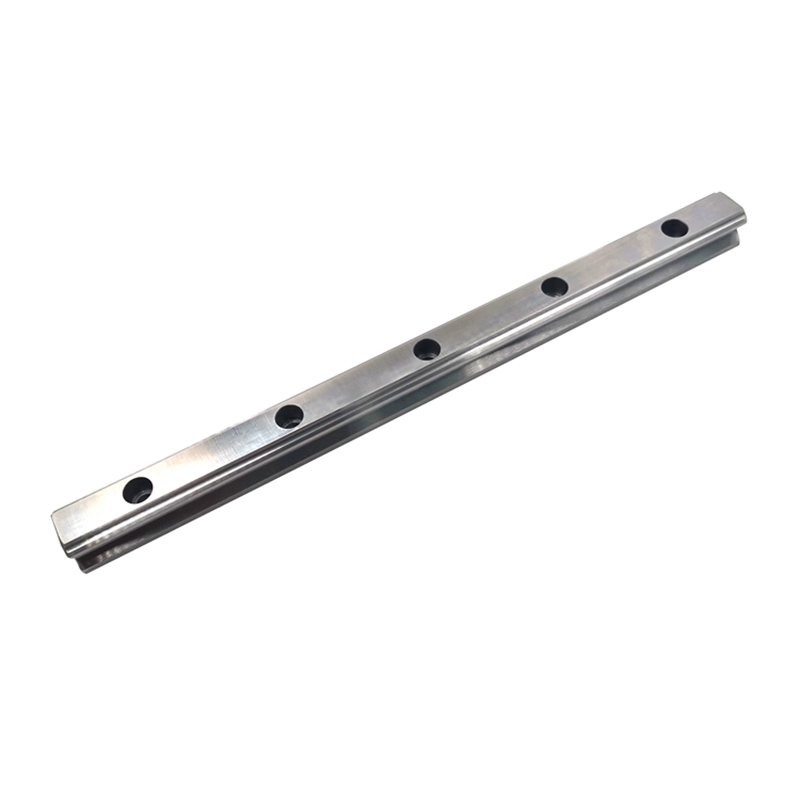

Part No : HGH30CA, HGH30CAZ0C, HGH30CAZAC, HGH30CAZ0H
Series: HG series
Block Type: Square type
Model Size : 30 mm
Load Type: Super heavy load
Block Mounting: Mounting from Top
Block: Standard type block
Preload Class: Light Preload (0-0.02 C), Medium Preload (0.05-0.07 C)
Precision code：C,H
Dust Protection Standard preotection (End seal and bottom seal)
Brand:FON

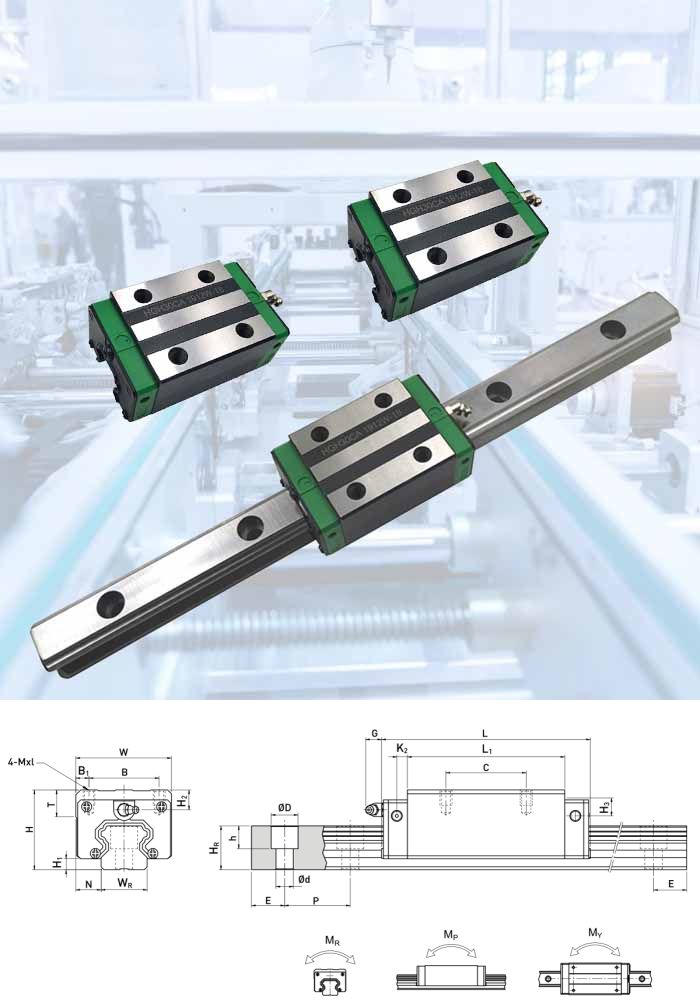

| H | Total height | 45 | mm |
| H1 | 6 | mm | |
| N | 16 | mm | |
| W | Block width | 60 | mm |
| B | 40 | mm | |
| B1 | 10 | mm | |
| C | 40 | mm | |
| L1 | 70 | mm | |
| L | Block length | 97.4 | mm |
| K1 | 20.25 | mm | |
| K2 | 6 | mm | |
| G | 12 | mm | |
| M | M8 | ||
| l | 10 | mm | |
| T | 8.5 | mm | |
| H2 | 9.5 | mm | |
| H3 | 13.8 | mm | |
| Mass | 0.88 | kg |
