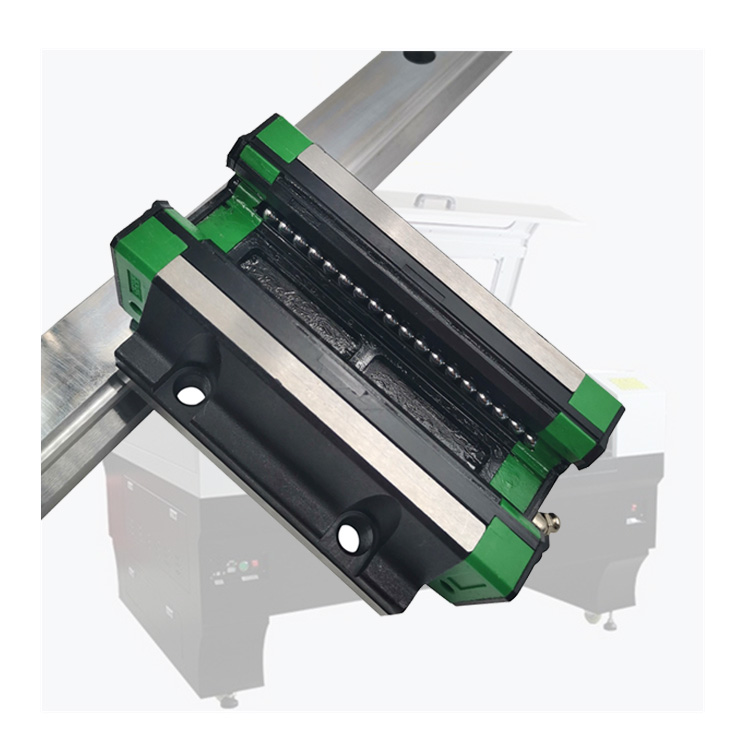

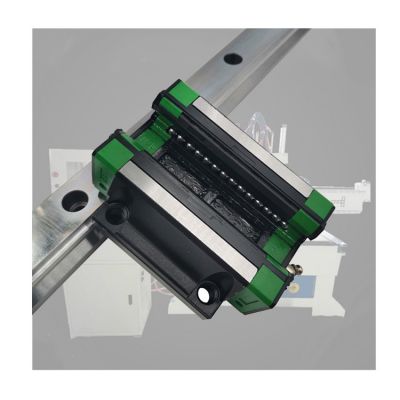

Product name:high precesion linear motion guide way HGW55HC
Part No : HGW55HC, HGW55HCZ0C, HGW55HCZAC, HGW55HCZ0H
Model Size : 55 mm
Load Type: Heavy load
Block Mounting: Top or bottom
Block: Standard type block
Preload Class: Light Preload , Medium Preload
Precision code：C,H
Dynamic load rating:184.900N
Static load rating:276.230N
Static moment:4.880Nm
Static moment:4.570Nm
Static moment:4.570Nm

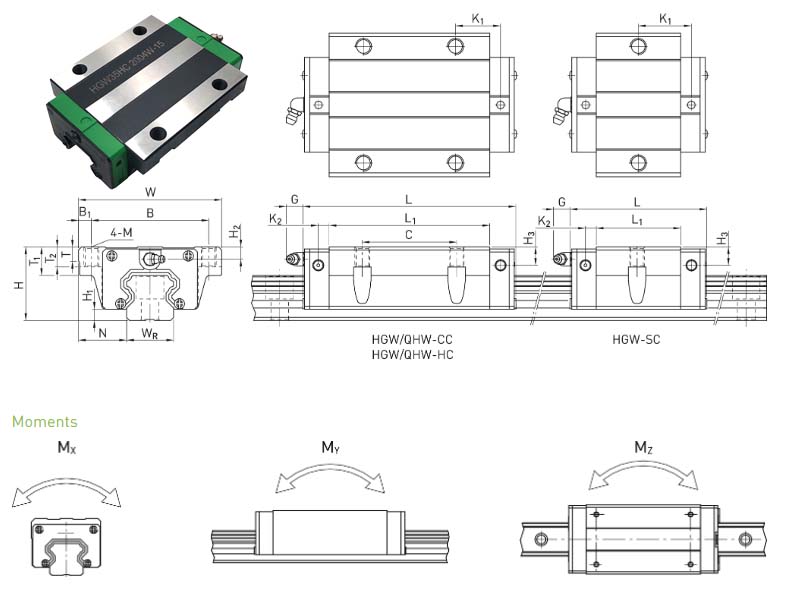

| H | Total height | 70 | mm |
| H1 | 13 | mm | |
| N | 43.5 | mm | |
| W | Block width | 140 | mm |
| B | 116 | mm | |
| B1 | 12 | mm | |
| C | 95 | mm | |
| L1 | 155.8 | mm | |
| L | Block length | 204.8 | mm |
| K1 | 36.4 | mm | |
| K2 | 11 | mm | |
| G | 12.9 | mm | |
| M | M14 | ||
| T | 17.5 | mm | |
| T1 | 26.5 | mm | |
| T2 | 17 | mm | |
| H2 | 12 | mm | |
| H3 | 19 | mm | |
| Mass | 5.96 | kg |
