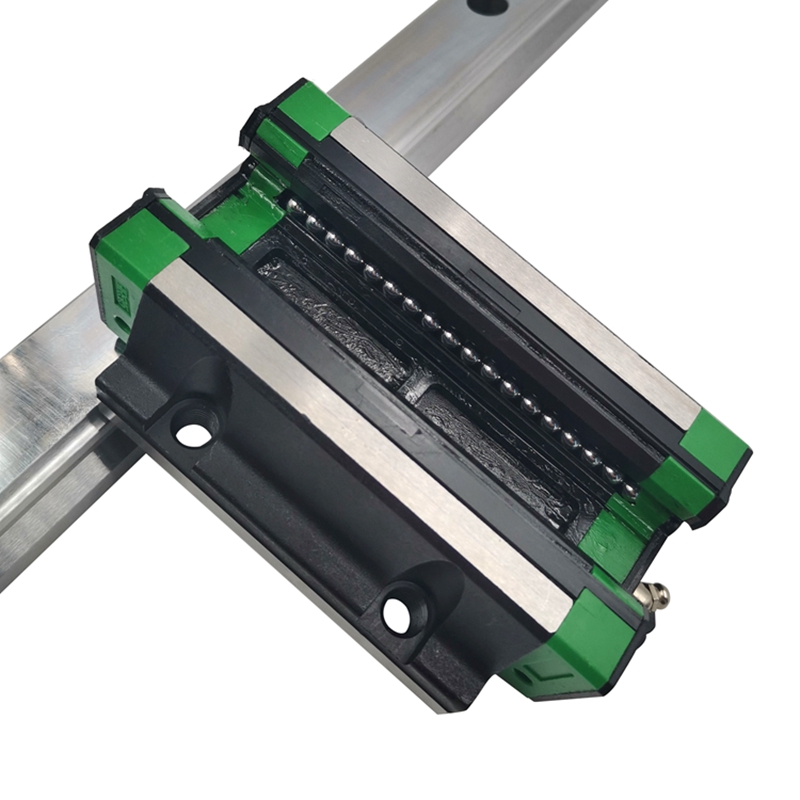

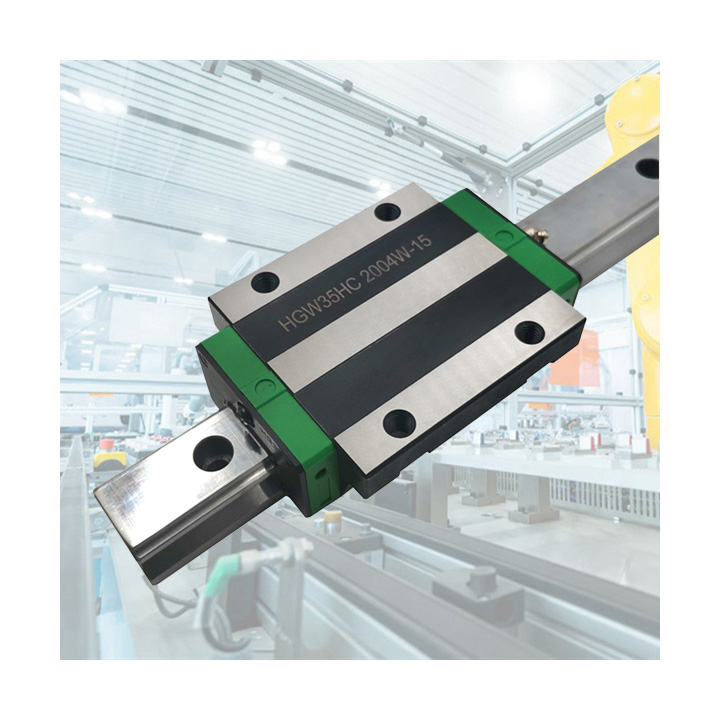

Product name:HGW45HC block sliding in linear guides
Part No : HGW45HC, HGW45HCZ0C, HGW45HCZAC, HGW45HCZAH
Model Size : 45 mm
Load Type: Heavy load
Block Mounting: Top or bottom
Block: Standard type block
Preload Class: Light Preload , Medium Preload
Precision code：C,H
Dynamic load rating:125.300N
Static load rating:191.850N
Static moment:2.630Nm
Static moment:2.680Nm
Static moment:2.680Nm

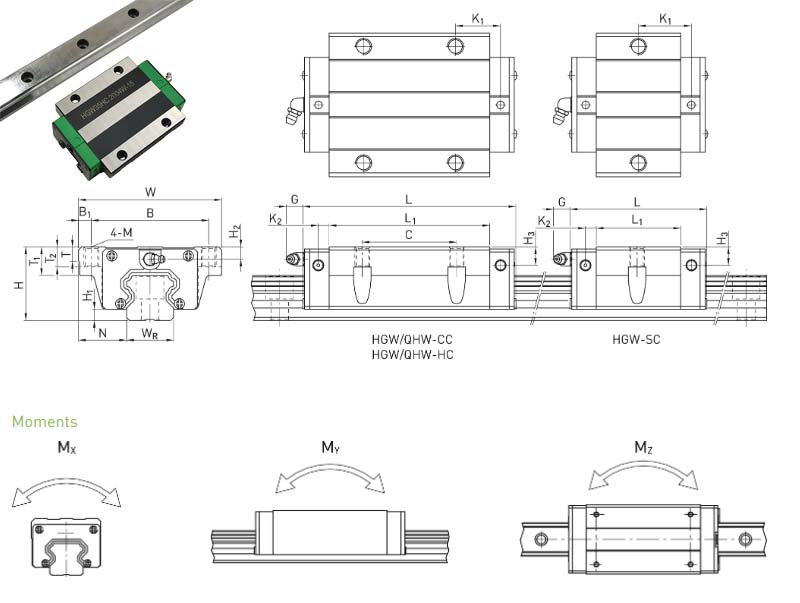

| H | Total height | 60 | mm |
| H1 | 9.5 | mm | |
| N | 37.5 | mm | |
| W | Block width | 120 | mm |
| B | 100 | mm | |
| B1 | 10 | mm | |
| C | 80 | mm | |
| L1 | 128.8 | mm | |
| L | Block length | 171.2 | mm |
| K1 | 28.9 | mm | |
| K2 | 10 | mm | |
| G | 12.9 | mm | |
| M | M12 | ||
| T | 15.1 | mm | |
| T1 | 22 | mm | |
| T2 | 15 | mm | |
| H2 | 8.5 | mm | |
| H3 | 20.5 | mm | |
| Mass | 3.69 | kg |
