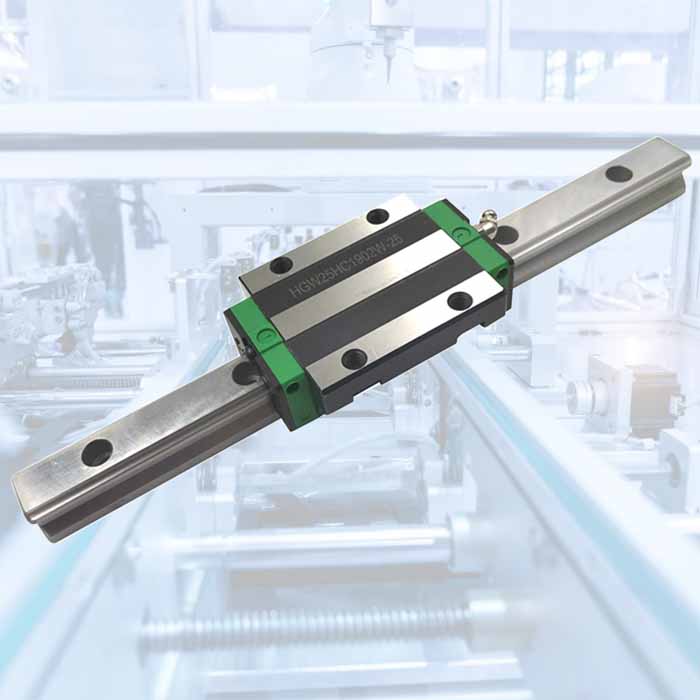

Part No : HGW25HC, HGW25HCZ0C, HGW25HCZAC, HGW25HCZAH
Model Size : 25 mm
Load Type: Super heavy load
Block Mounting: Top or bottom
Preload Class: Light Preload , Medium Preload
Precision code：C,H
Dust Protection Standard preotection (End seal and bottom seal)
Dynamic load rating:42.200N
Static load rating:69.070N

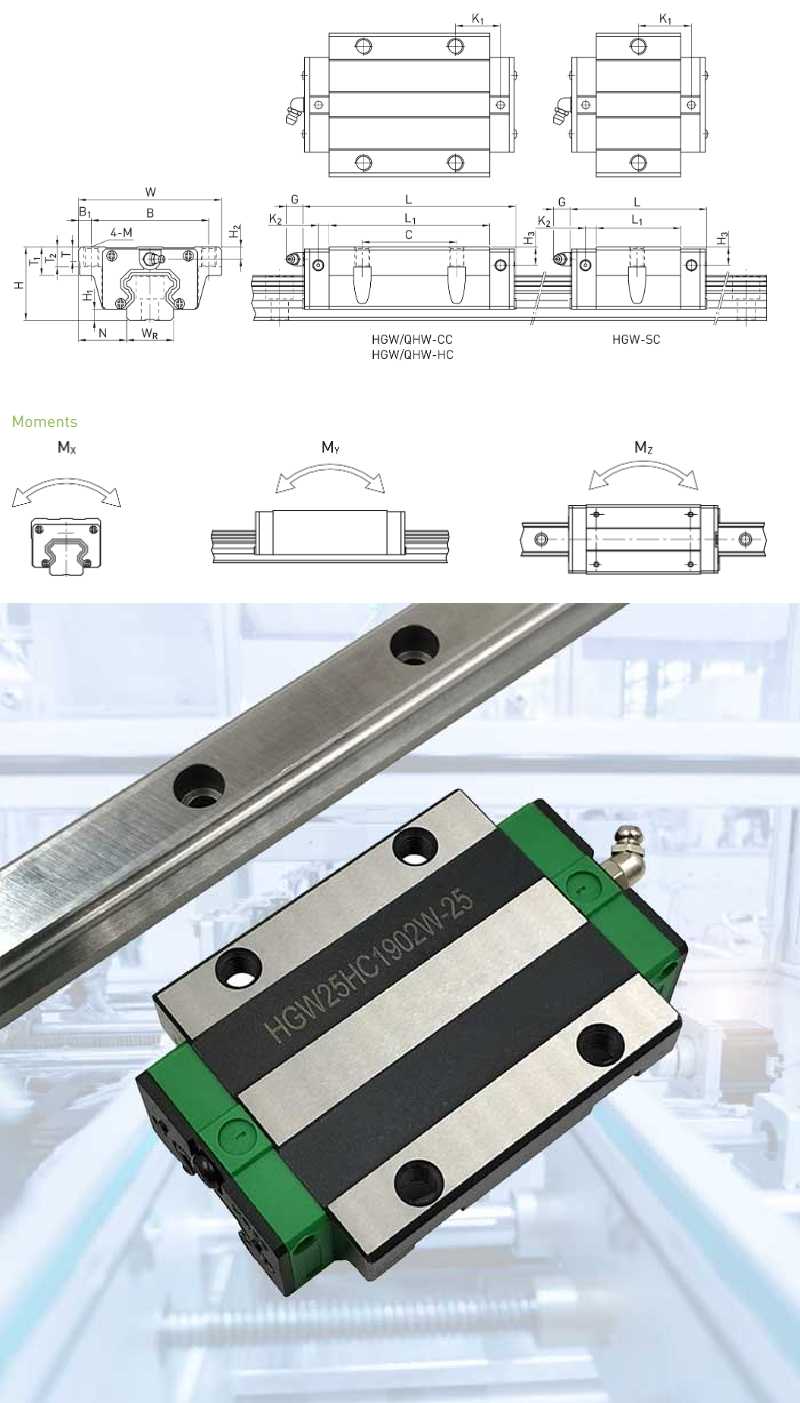

| H | Total height | 36 | mm |
| H1 | 5.5 | mm | |
| N | 23.5 | mm | |
| W | Block width | 70 | mm |
| B | 57 | mm | |
| B1 | 6.5 | mm | |
| C | 45 | mm | |
| L1 | 78.6 | mm | |
| L | Block length | 104.6 | mm |
| K1 | 21 | mm | |
| K2 | 6 | mm | |
| G | 12 | mm | |
| M | M8 | ||
| T | 8 | mm | |
| T1 | 14 | mm | |
| T2 | 10 | mm | |
| H2 | 6 | mm | |
| H3 | 5 | mm | |
| Mass | 0.8 | kg |
