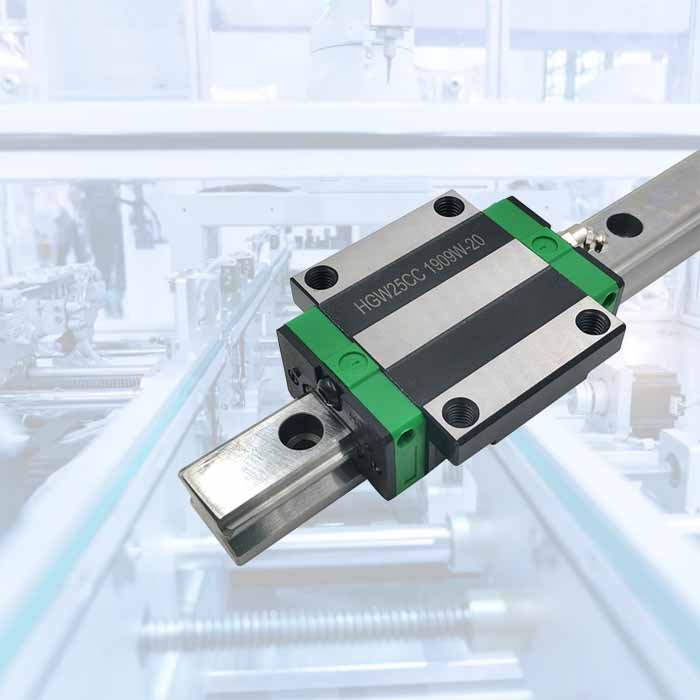

Part No : HGW25CC,HGW25CCZ0C, HGW25CCZAC, HGW25CCA0H, HGW25CCZAH
Series: HG series
Block Type: Flange type
Model Size : 25 mm
Load Type: Heavy load
Block Mounting: Top or bottom
Block: Standard type block
Preload Class: Light Preload , Medium Preload
Precision code：C,H
Dust Protection Standard preotection (End seal and bottom seal)
Dynamic load rating:34.900N
Static load rating:52.820N

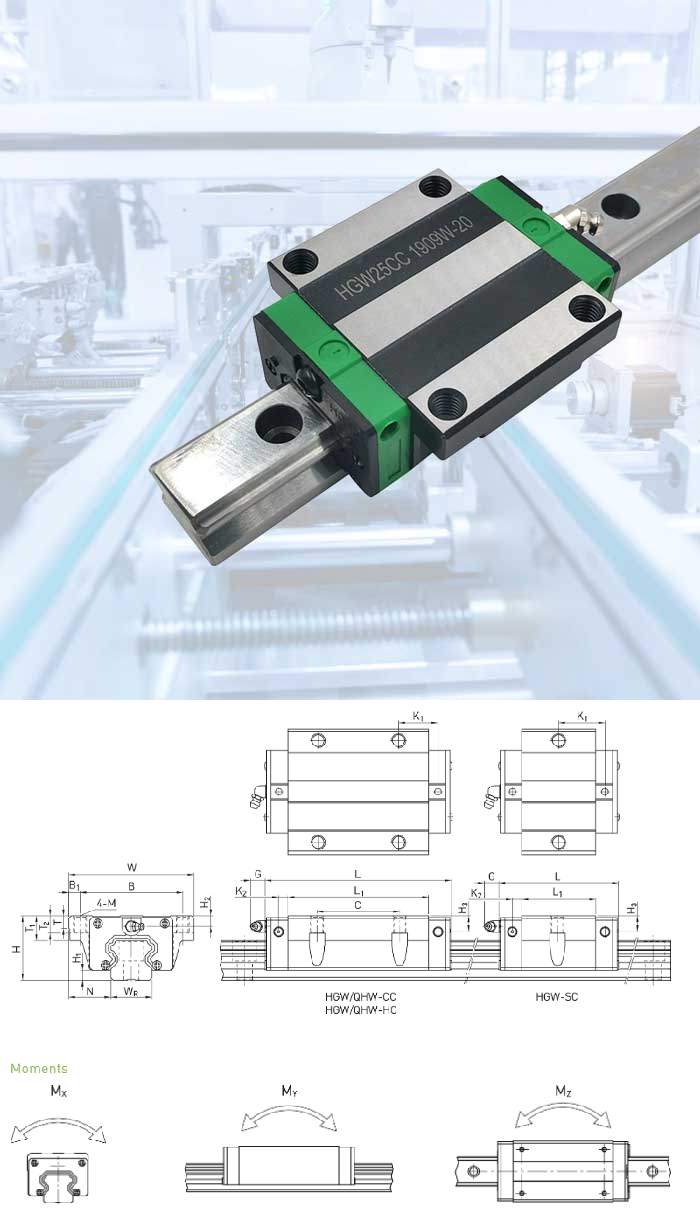

| H | Total height | 36 | mm |
| H1 | 5.5 | mm | |
| N | 23.5 | mm | |
| W | Block width | 70 | mm |
| B | 57 | mm | |
| B1 | 6.5 | mm | |
| C | 45 | mm | |
| L1 | 58 | mm | |
| L | Block length | 84 | mm |
| K1 | 10.7 | mm | |
| K2 | 6 | mm | |
| G | 12 | mm | |
| M | M8 | ||
| T | 8 | mm | |
| T1 | 14 | mm | |
| T2 | 10 | mm | |
| H2 | 6 | mm | |
| H3 | 5 | mm | |
| Mass | 0.59 | kg |
