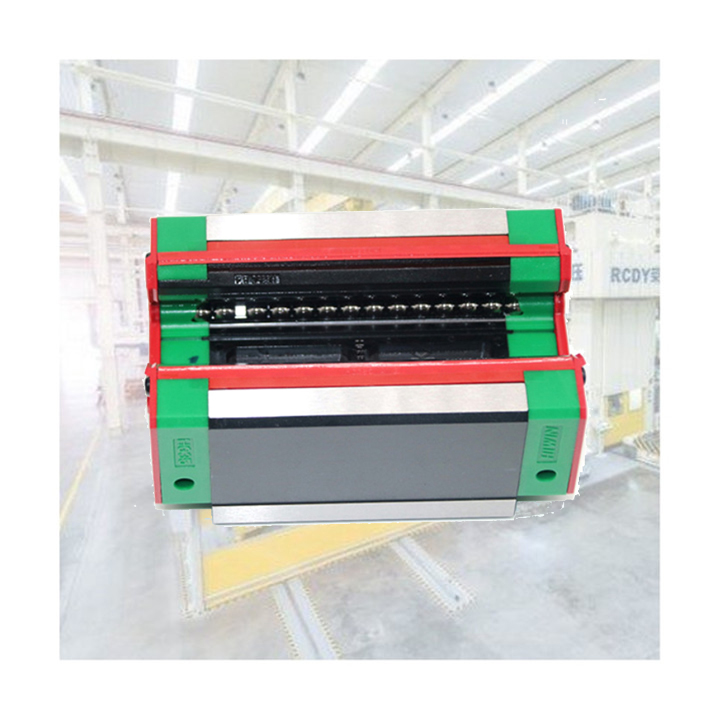

Product name: hiwin hgh25ca linear guides and slides hiwin
Series: HG
Block type: Square type
Model size: 25
Load type: Heavy load
Block mounting type: Mounting From Top
Preload code: Z0, ZA
Precision code: C,H
Applicable rails：HGR25

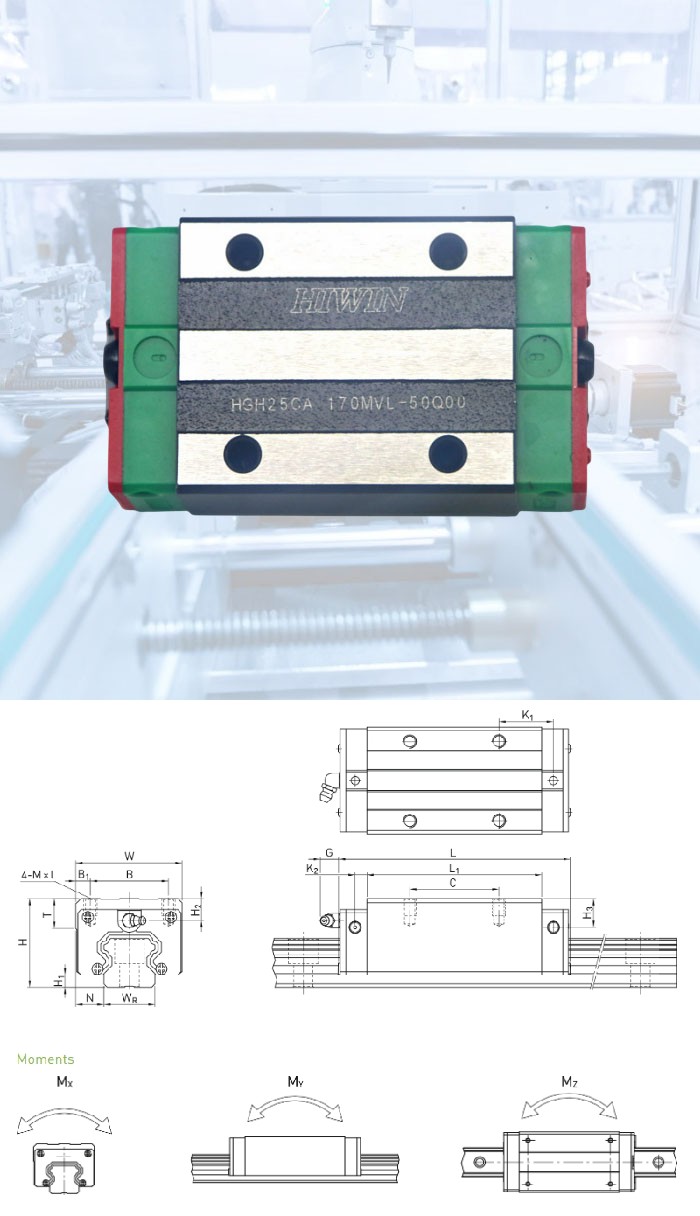

| 12.5 | mm | ||
| W | Block width | 48 | mm |
| B | 35 | mm | |
| B1 | 6.5 | mm | |
| C | 35 | mm | |
| L1 | 58 | mm | |
| L | Block length | 84 | mm |
| K1 | 15.7 | mm | |
| K2 | 6 | mm | |
| G | 12 | mm | |
| M | M6 | ||
| l | 8 | mm | |
| T | 8 | mm | |
| H2 | 10 | mm | |
| H3 | 9 | mm | |
| Mass | 0.51 | kg |
