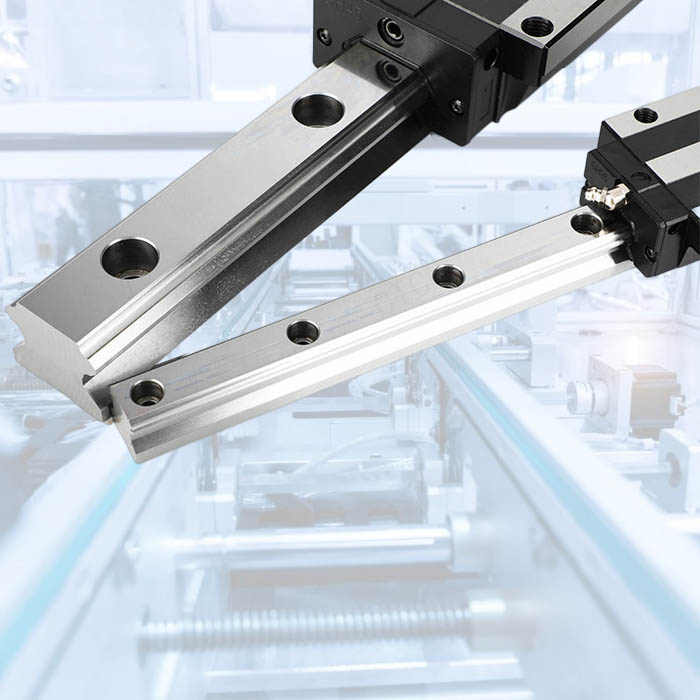

Product Name:55mm linear guide slider rails HGR55 HG55 HGH55 HGW55
Series: HG
Rail Type: Interchangeable Rail
Model size: 55
Rail Mounting Type: Mounting From Top
Rail Length: according to customer request
Precision Code: C,H
Suitable block: HGH55, HGW55

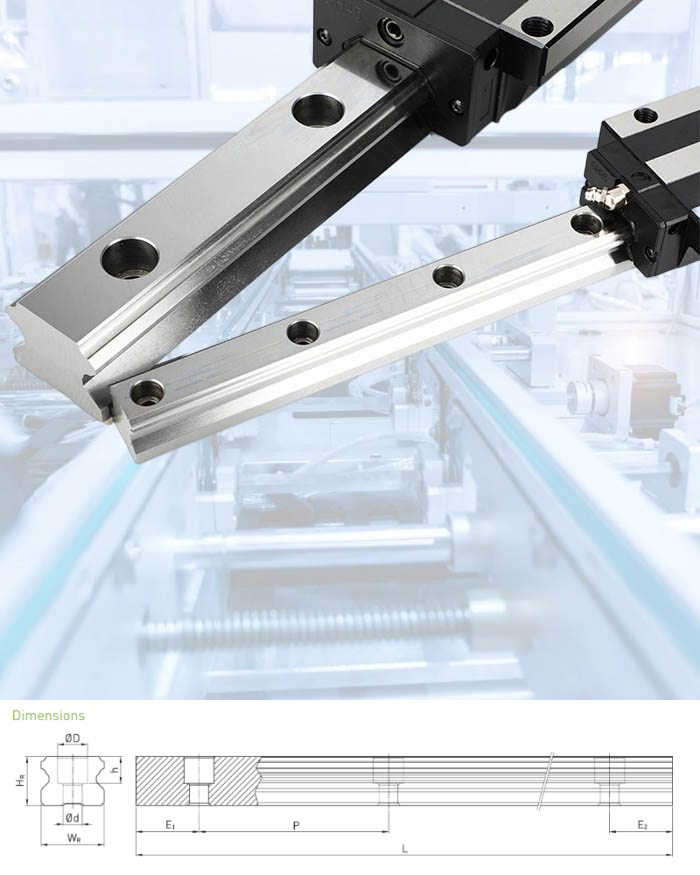

| WR | Rail width | 53 | mm |
| HR | Rail height | 44 | mm |
| D | 23 | mm | |
| h | 20 | mm | |
| d | 16 | mm | |
| P | Hole pitch | 120 | mm |
| Lmax | Max. length (E1 = E2 = P/2) | 3.840 | mm |
| Lmin | Min. length | 148 | mm |
| E1/2 min | 14 | mm | |
| E1/2 max | 106 | mm | |
| Weight | 15.08 | kg/m |
