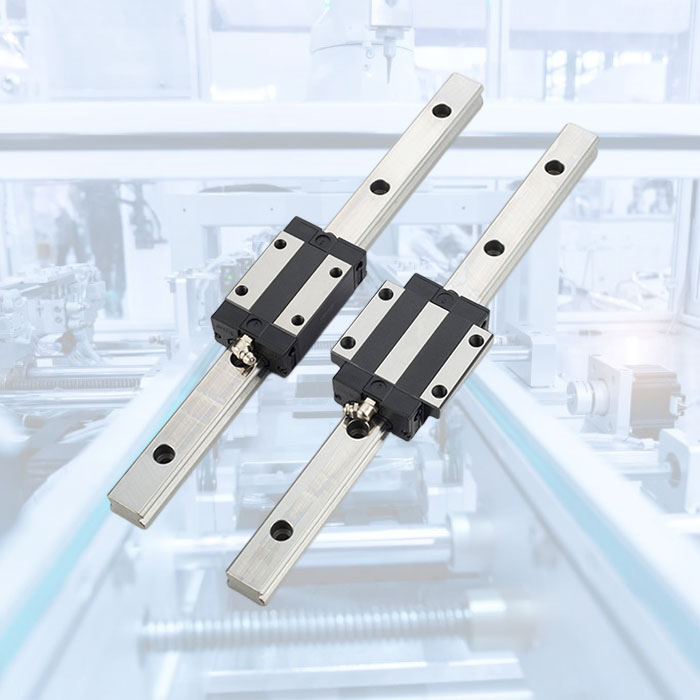

Product Name:linear rail 650mm EGR20 EG20 EGR20R
Series: EG
Rail Type: Interchangeable Rail
Model size: 20
Rail Mounting Type: R - Mounting From Top
Rail Length: according to customer request
Precision Code: C,H
Suitable block: EGH20, EGW20

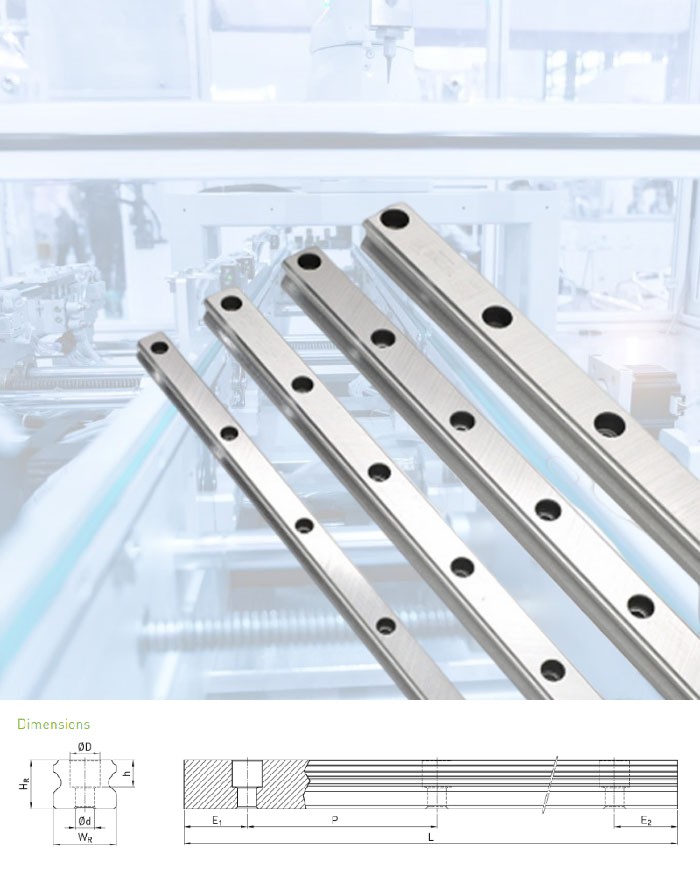

| WR | Rail width | 20 | mm |
| HR | Rail height | 15.5 | mm |
| D | 9.5 | mm | |
| h | 8.5 | mm | |
| d | 6 | mm | |
| P | Hole pitch | 60 | mm |
| Lmax | Max. length (E1 = E2 = P/2) | 3.900 | mm |
| Lmin | Min. length | 74 | mm |
| E1/2 min | 7 | mm | |
| E1/2 max | 53 | mm | |
| Weight | 2.08 | kg/m |
