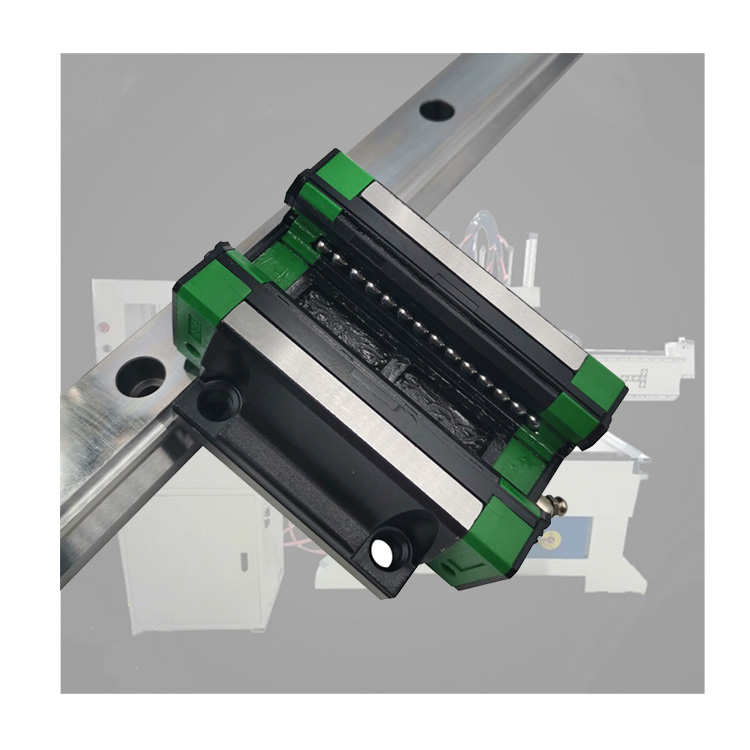

Product name:competitive price linear rails and slider HGW55CC
Part No : HGW55CC, HGW55CCZ0C, HGW55CCZAC,HGW55CCZ0H
Model Size : 55 mm
Load Type: Heavy load
Block Mounting: Top or bottom
Block: Standard type block
Preload Class: Light Preload , Medium Preload
Precision code：C,H
Dynamic load rating:153.200N
Static load rating:211.230N
Static moment:3.690Nm
Static moment:2.640Nm
Static moment:2.640Nm

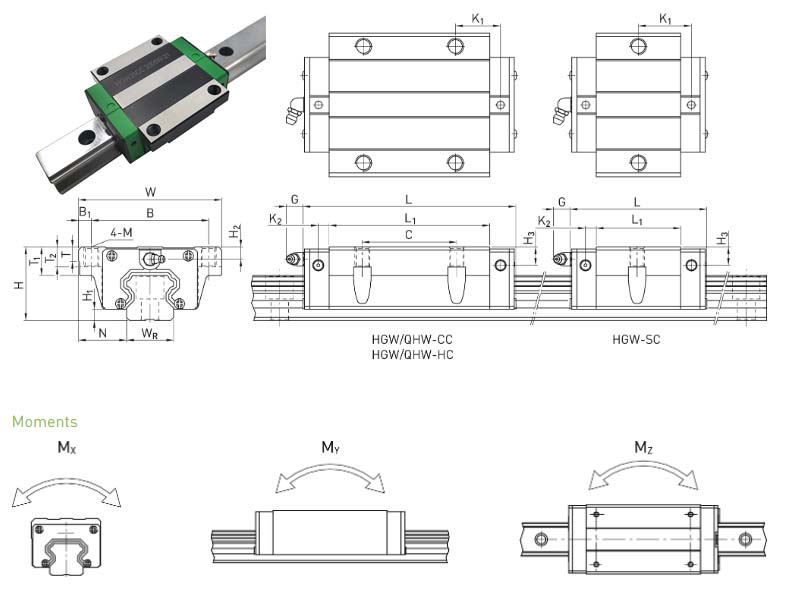

| H | Total height | 70 | mm |
| H1 | 13 | mm | |
| N | 43.5 | mm | |
| W | Block width | 140 | mm |
| B | 116 | mm | |
| B1 | 12 | mm | |
| C | 95 | mm | |
| L1 | 117.7 | mm | |
| L | Block length | 166.7 | mm |
| K1 | 17.35 | mm | |
| K2 | 11 | mm | |
| G | 12.9 | mm | |
| M | M14 | ||
| T | 17.5 | mm | |
| T1 | 26.5 | mm | |
| T2 | 17 | mm | |
| H2 | 12 | mm | |
| H3 | 19 | mm | |
| Mass | 4.52 | kg |
