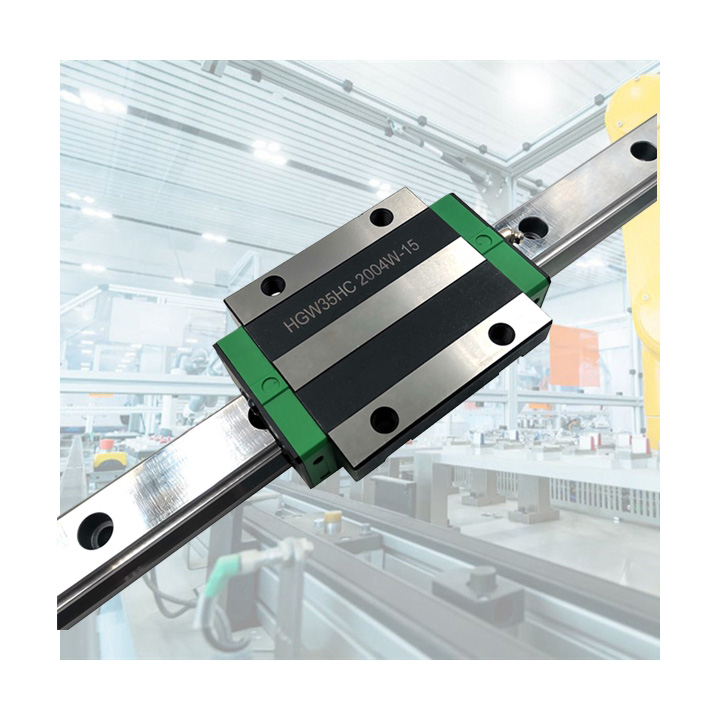

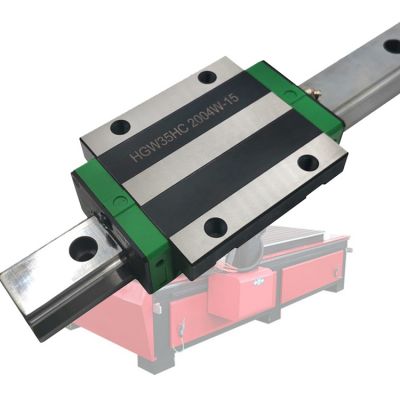

Product name:china manufacturer linear guide 35mm HGW35HC
Part No : HGW35HC, HGW35HCZ0C, HGW35HCZAC, HGW35HCZAH
Model Size : 35 mm
Load Type: Super heavy load
Block Mounting: Top or bottom
Block: Standard type block
Preload Class: Light Preload , Medium Preload
Precision code：C,H
Dynamic load rating:77.900N
Static load rating:122.770N
Static moment(M0X):1.540Nm
Static moment(M0Y):1.400Nm
Static moment(M0Z):1.400Nm

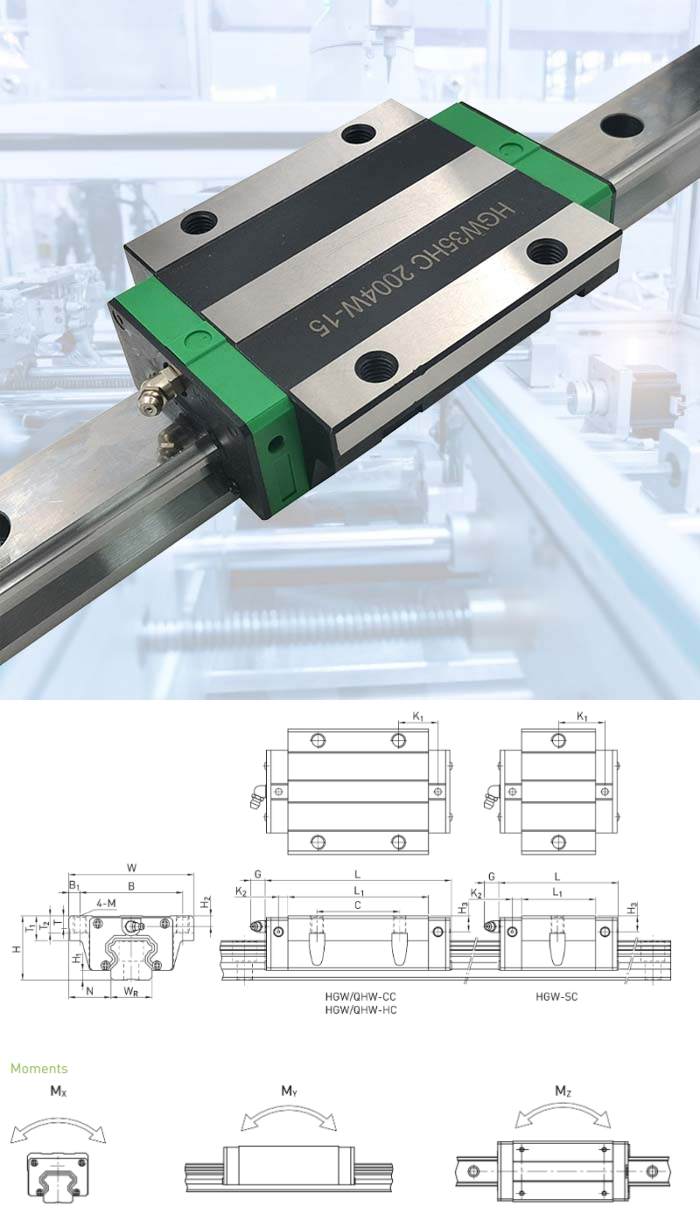

| H | Total height | 48 | mm |
| H1 | 7.5 | mm | |
| N | 33 | mm | |
| W | Block width | 100 | mm |
| B | 82 | mm | |
| B1 | 9 | mm | |
| C | 62 | mm | |
| L1 | 105.8 | mm | |
| L | Block length | 138.2 | mm |
| K1 | 27.5 | mm | |
| K2 | 7 | mm | |
| G | 12 | mm | |
| M | M10 | ||
| T | 10.1 | mm | |
| T1 | 18 | mm | |
| T2 | 13 | mm | |
| H2 | 9 | mm | |
| H3 | 12.6 | mm | |
| Mass | 2.06 | kg |
