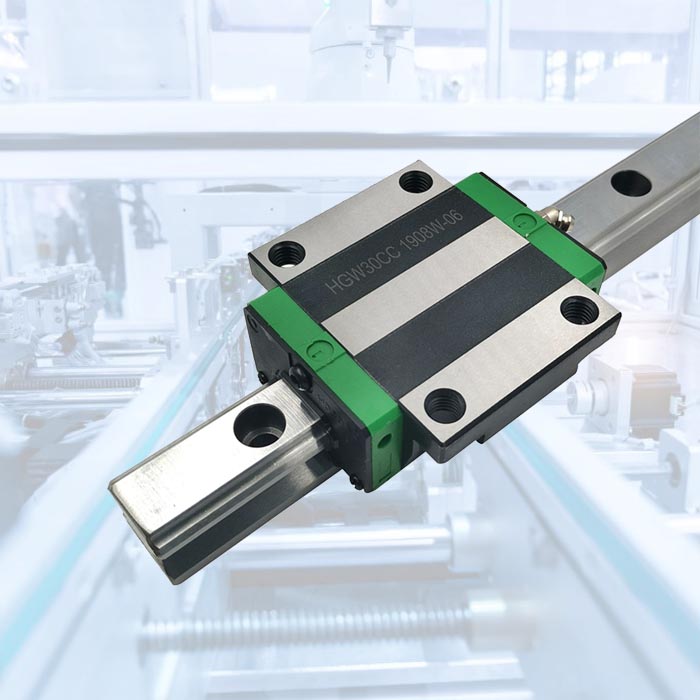

Part No : HGW30CC, HGW30CCZ0C, HGW30CCZAC , HGW30CCZ0H
Model Size : 30 mm
Load Type: Heavy load
Block Mounting: Top or bottom
Block: Standard type block
Preload Class: Light Preload , Medium Preload
Precision code：C,H
Dynamic load rating:48.500N
Static load rating:71.870N
Static moment:660Nm
Static moment:530Nm

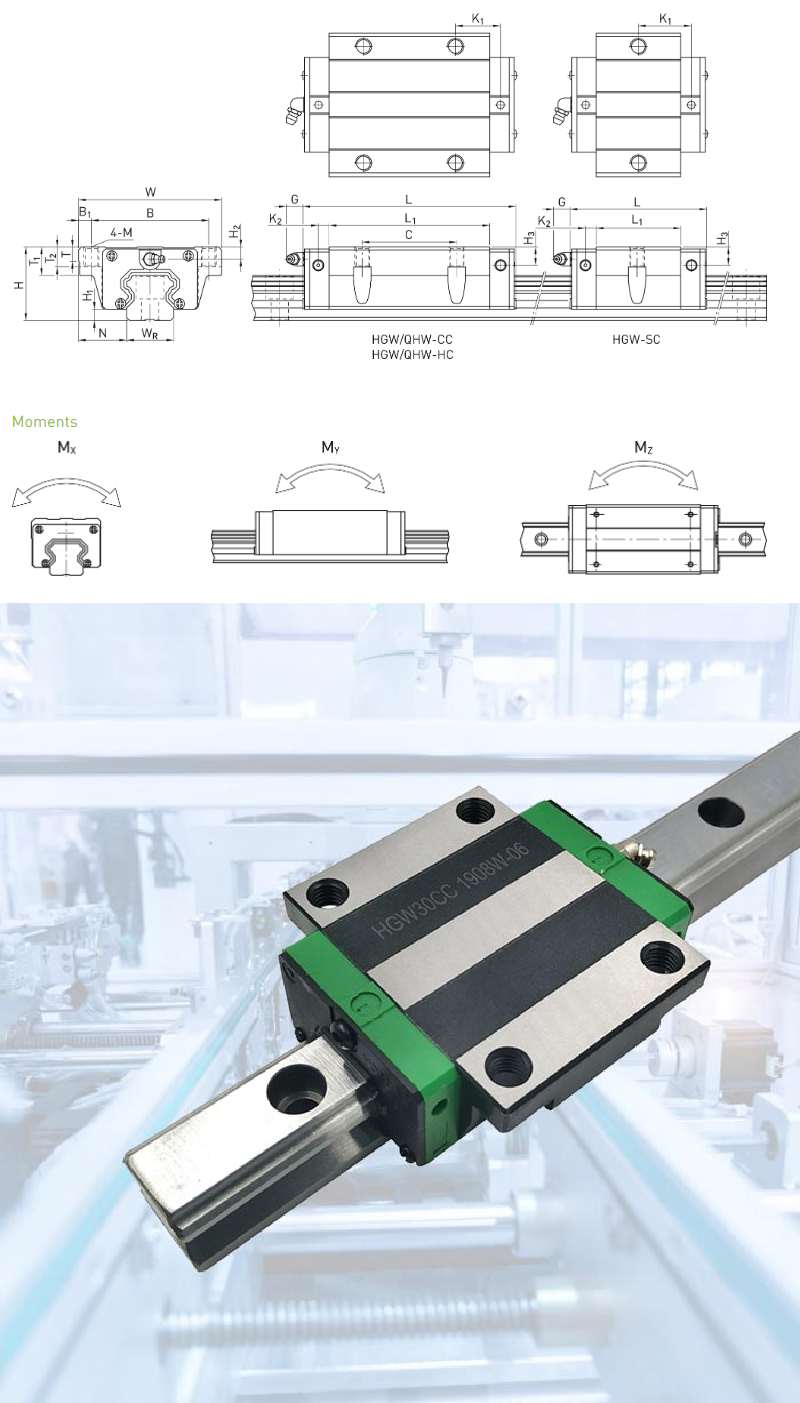

| H | Total height | 42 | mm |
| H1 | 6 | mm | |
| N | 31 | mm | |
| W | Block width | 90 | mm |
| B | 72 | mm | |
| B1 | 9 | mm | |
| C | 52 | mm | |
| L1 | 70 | mm | |
| L | Block length | 97.4 | mm |
| K1 | 14.25 | mm | |
| K2 | 6 | mm | |
| G | 12 | mm | |
| M | M10 | ||
| T | 8.5 | mm | |
| T1 | 16 | mm | |
| T2 | 10 | mm | |
| H2 | 6.5 | mm | |
| H3 | 10.8 | mm | |
| Mass | 1.09 | kg |
