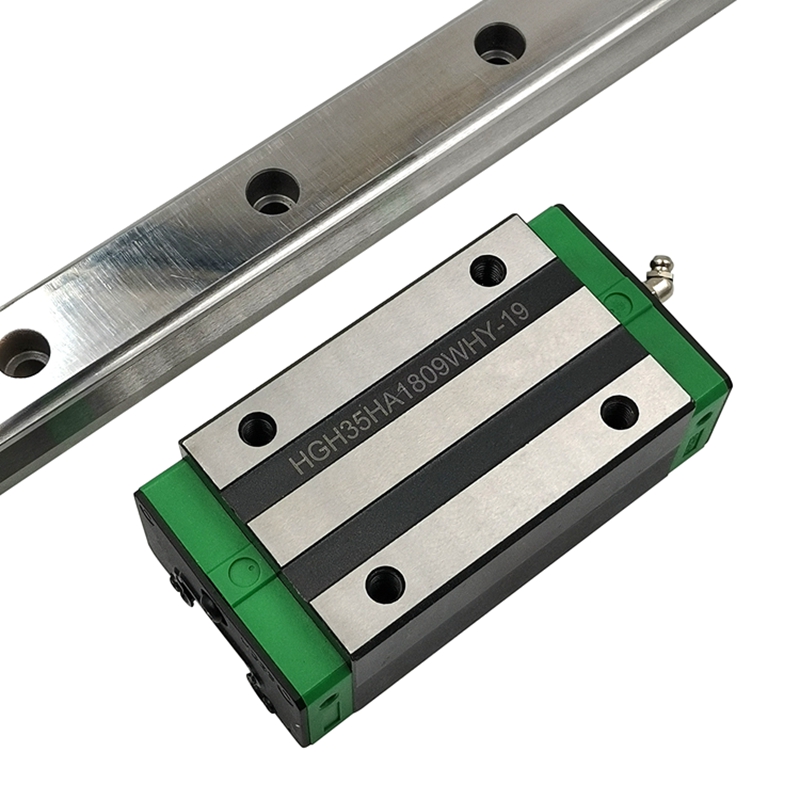

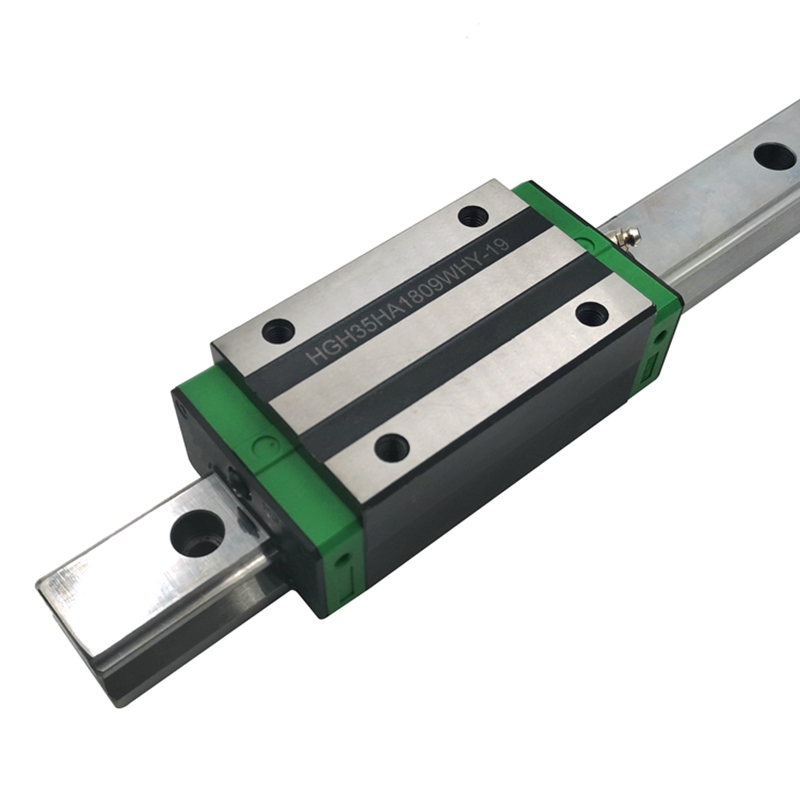

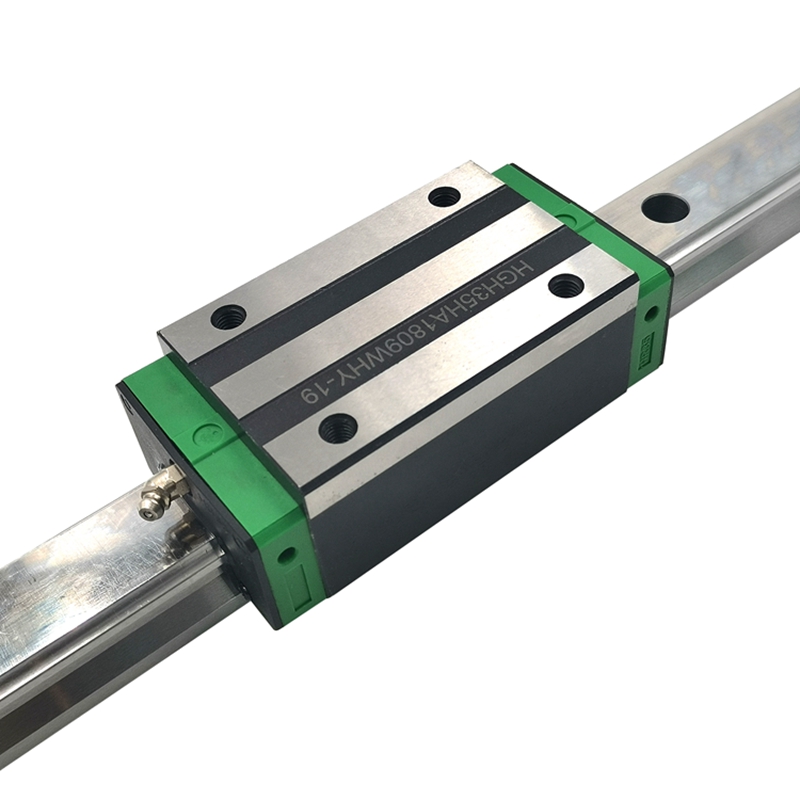

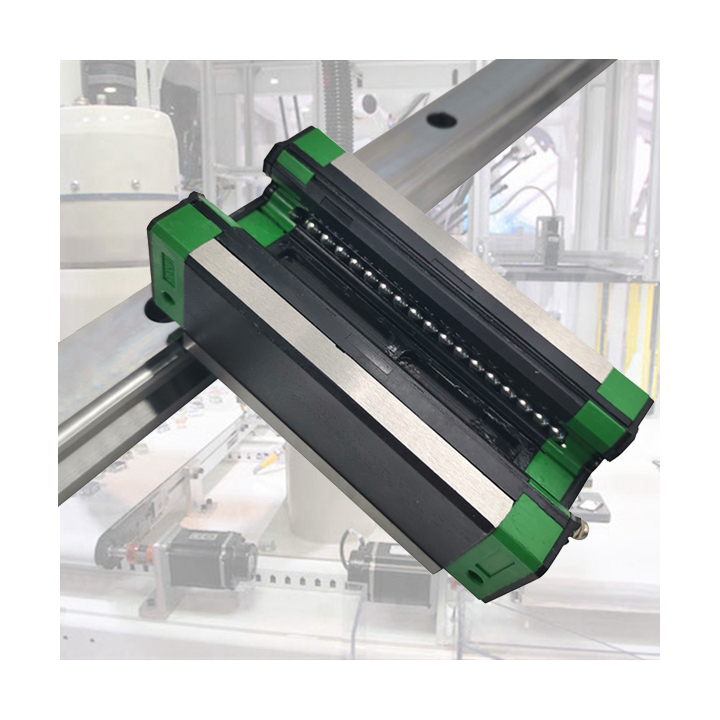

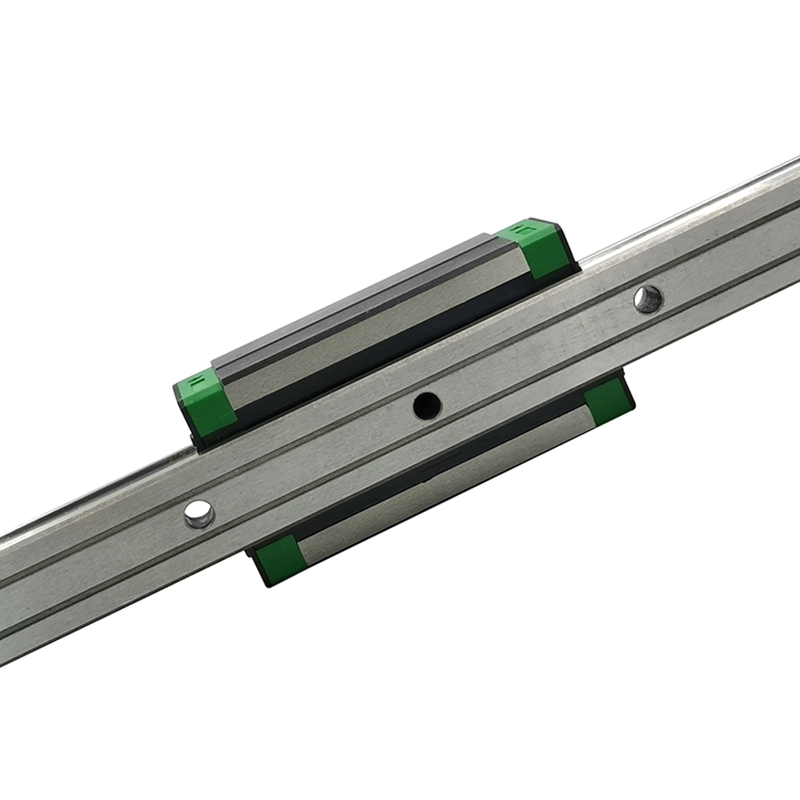

Part No:HGH55HA, HGH55HAZ0C, HGH55HAZAC, HGH55HAZ0H
Series: HG series
Block Type: Square type
Model Size : 55 mm
Load Type: Super heavy load
Block Mounting: Mounting from Top
Block: Standard type block
Preload Class: Light Preload (0-0.02 C), Medium Preload (0.05-0.07 C)
Block height:67mm
Block width:100mm
Block length:204.8mm
Mass:5.49kg

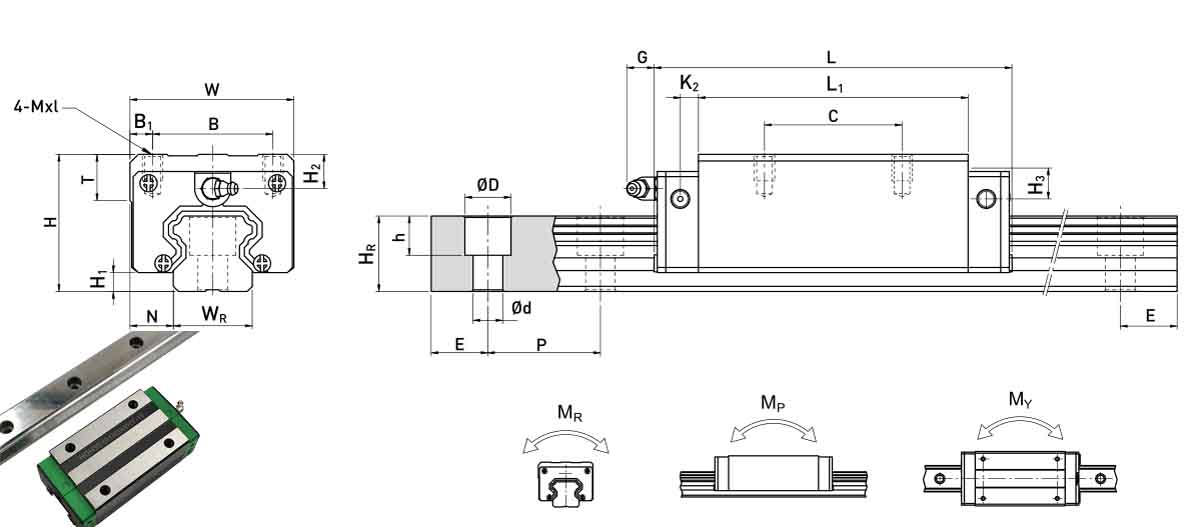

| H | Total height | 80 | mm |
| H1 | 13 | mm | |
| N | 23.5 | mm | |
| W | Block width | 100 | mm |
| B | 75 | mm | |
| B1 | 12.5 | mm | |
| C | 95 | mm | |
| L1 | 155.8 | mm | |
| L | Block length | 204.8 | mm |
| K1 | 36.4 | mm | |
| K2 | 11 | mm | |
| G | 12.9 | mm | |
| M | M12 | ||
| l | 18 | mm | |
| T | 17.5 | mm | |
| H2 | 22 | mm | |
| H3 | 29 | mm | |
| Mass | 5.49 | kg |
