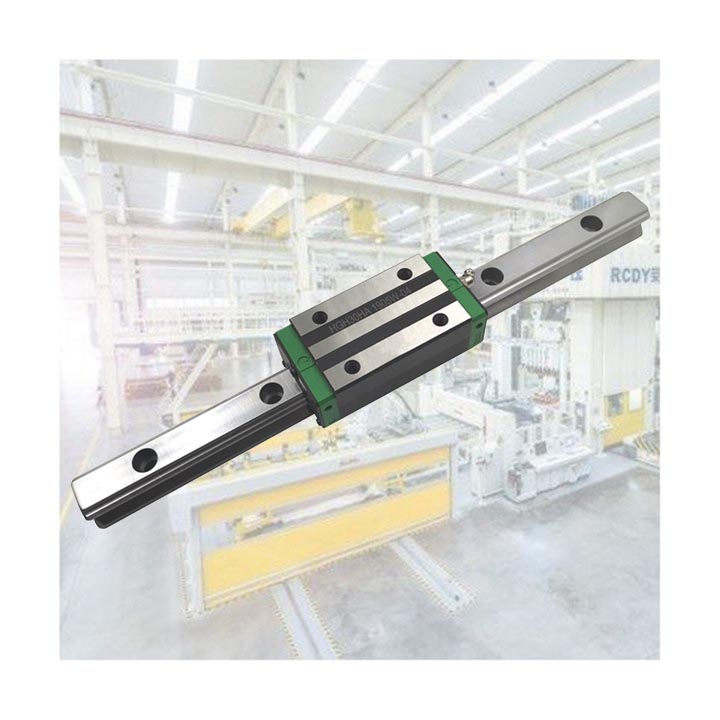

Part No:HGH30HA, HGH30HAZ0C, HGH30HAZAC, HGH30HAZ0H
Brand:FON
Series: HG series
Block Type: Square type
Model Size : 30 mm
Load Type: Super heavy load
Block Mounting: Mounting from Top
Block: Standard type block
Preload Class: Light Preload (0-0.02 C), Medium Preload (0.05-0.07 C)
Precision code:C,H
Total height:45mm
Block width:60mm
Block length:120.4mm
Mass:1.16kg

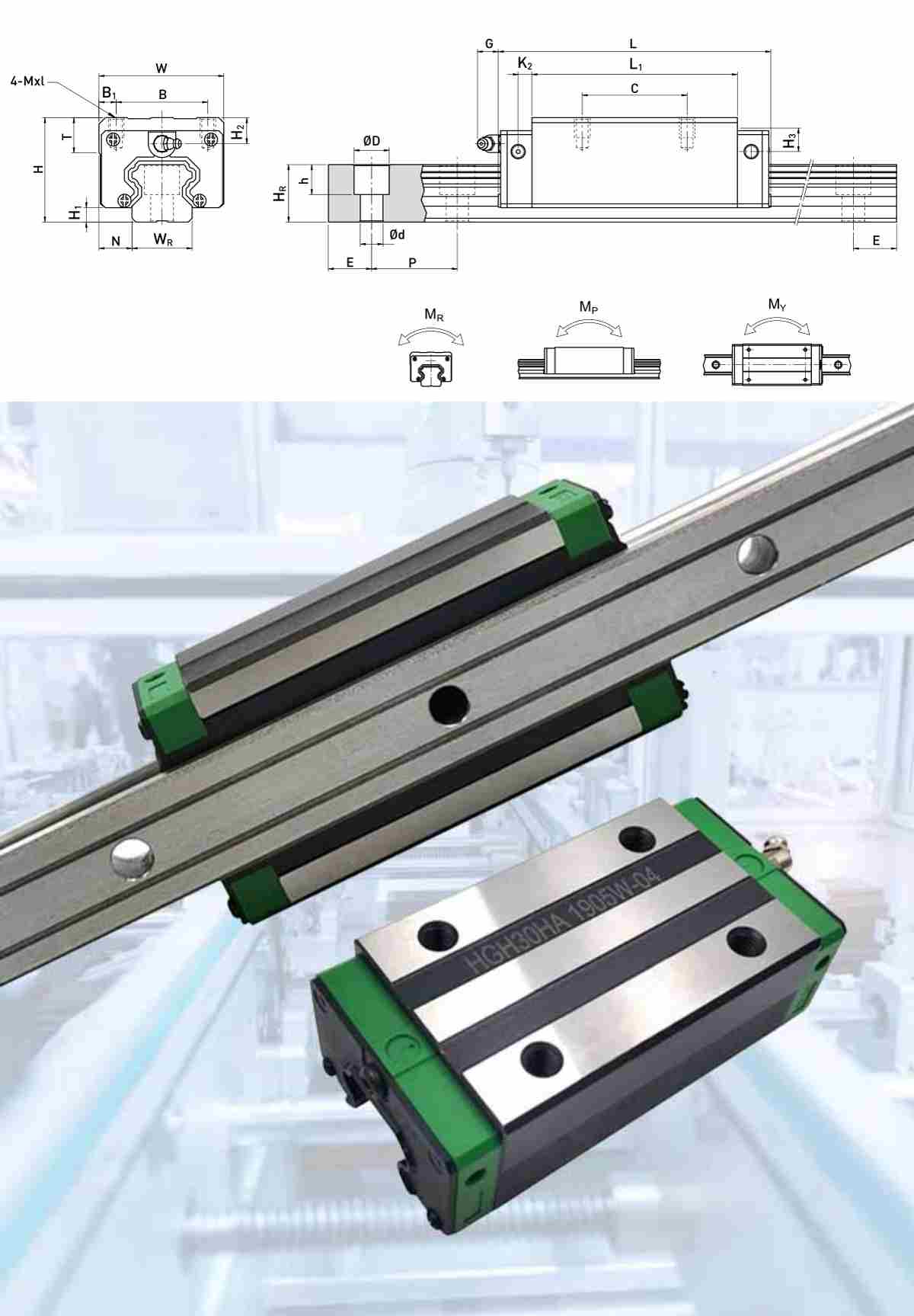

| H | Total height | 45 | mm |
| H1 | 6 | mm | |
| N | 16 | mm | |
| W | Block width | 60 | mm |
| B | 40 | mm | |
| B1 | 10 | mm | |
| C | 60 | mm | |
| L1 | 93 | mm | |
| L | Block length | 120.4 | mm |
| K1 | 21.75 | mm | |
| K2 | 6 | mm | |
| G | 12 | mm | |
| M | M8 | ||
| l | 10 | mm | |
| T | 8.5 | mm | |
| H2 | 9.5 | mm | |
| H3 | 13.8 | mm | |
| Mass | 1.16 | kg |
