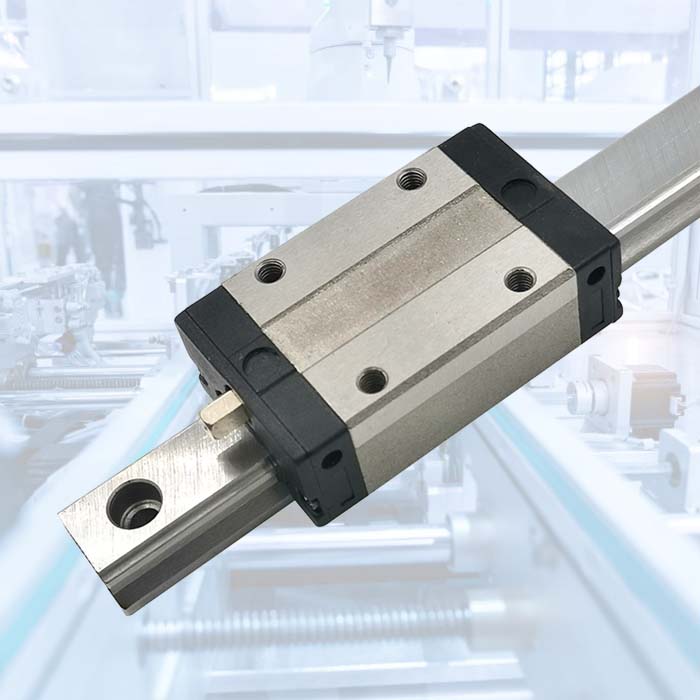

Product name:EGH35CA linear guide made in china
Part No : EGH35CA, EGH35CAZ0C, EGH35CAZAC, EGH35CAZBC,EGH35CAZ0H, EGH35CAZAH, EGH35CAZBH
Series: EG series
Block Type: Square type
Model Size : 35 mm
Load Type: Heavy load
Block Mounting: Mounting from Top
Block: Standard type block
Preload Class: Very Light Preload (Z0), Light Preload (ZA) , Medium Preload (ZB)
Precision code：C,H
| H | Total height | 48 | mm |
| H1 | 11 | mm | |
| N | 18 | mm | |
| W | Block width | 70 | mm |
| B | 50 | mm | |
| B1 | 10 | mm | |
| C | 50 | mm | |
| L1 | 78 | mm | |
| L | Block length | 108 | mm |
| K1 | 20 | mm | |
| K2 | 7 | mm | |
| G | 12 | mm | |
| M | M8 | ||
| l | 12 | mm | |
| T | 10 | mm | |
| H2 | 8.5 | mm | |
| H3 | 8.5 | mm | |
| Mass | 1.1 | kg |
