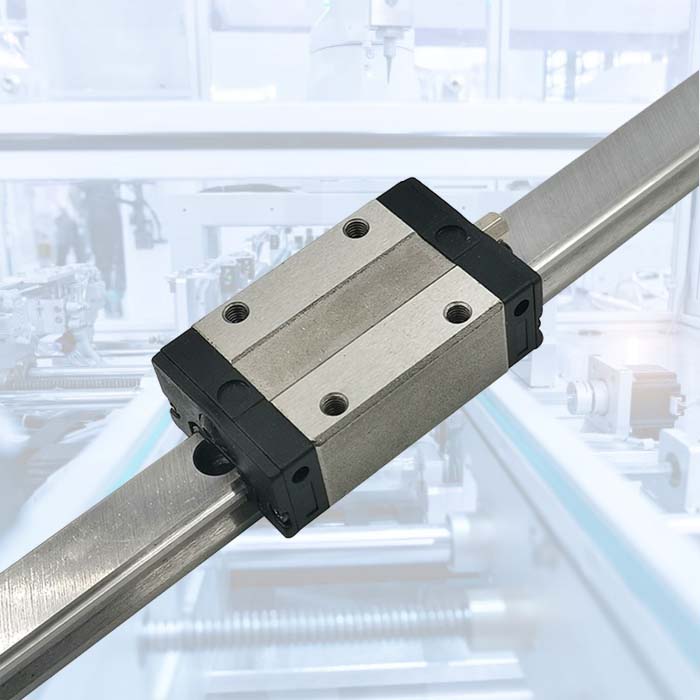

Product name:linear guide slide block EGH25CA
Part No : EGH25CA, EGH25CAZ0C, EGH25CAZAC, EGH25CAZBC,EGH25CAZ0H, EGH25CAZAH, EGH25CAZBH
Series: EG series
Block Type: Square type
Model Size : 25 mm
Load Type: Heavy load
Block Mounting: Mounting from Top
Block: Standard type block
Preload Class: Very Light Preload (Z0), Light Preload (ZA) , Medium Preload (ZB)
Precision code：C,H

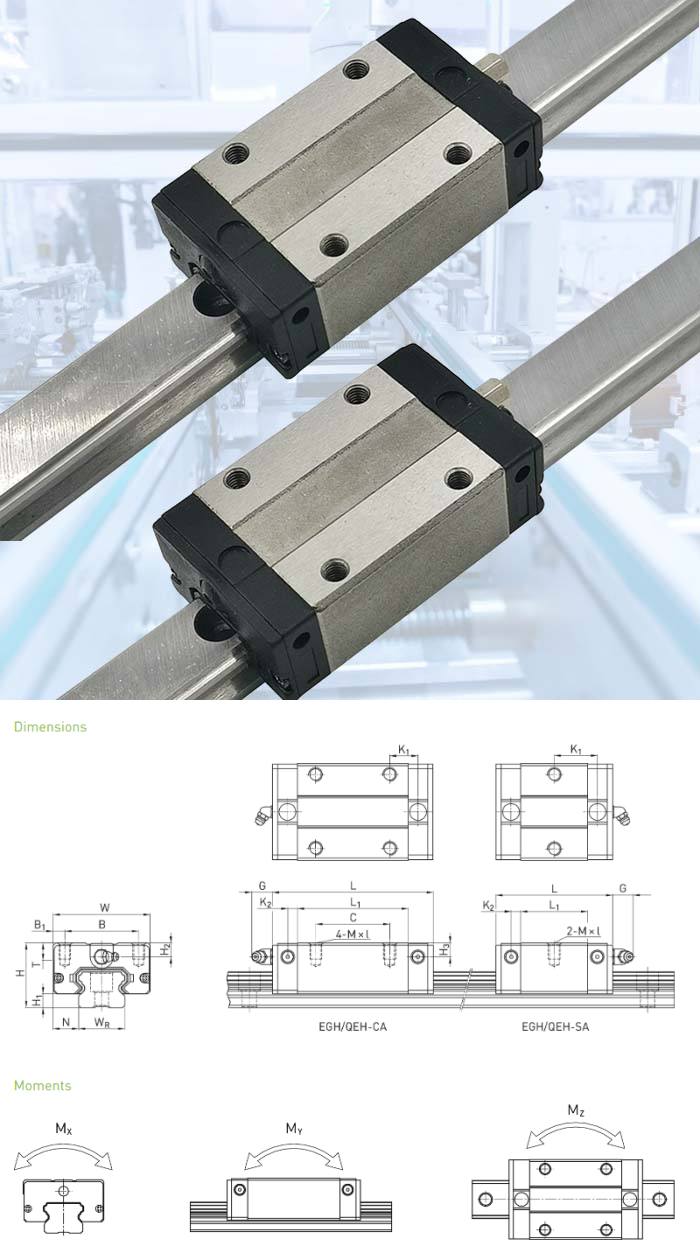

| H | Total height | 33 | mm |
| H1 | 7 | mm | |
| N | 12.5 | mm | |
| W | Block width | 48 | mm |
| B | 35 | mm | |
| B1 | 6.5 | mm | |
| C | 35 | mm | |
| L1 | 59 | mm | |
| L | Block length | 82.6 | mm |
| K1 | 16.15 | mm | |
| K2 | 4.55 | mm | |
| G | 12 | mm | |
| M | M6 | ||
| l | 9 | mm | |
| T | 8 | mm | |
| H2 | 8 | mm | |
| H3 | 8 | mm | |
| Mass | 0.41 | kg |
