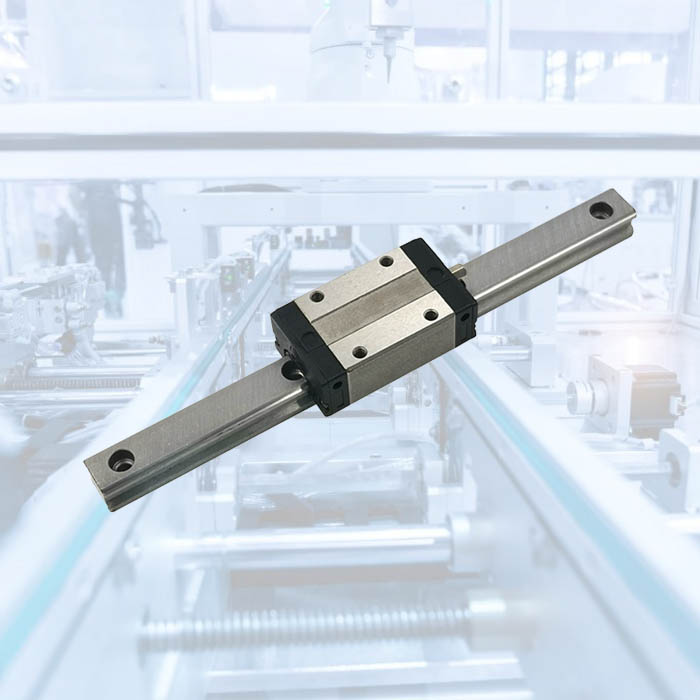

Product name:precision machine used linear guide EGH20CA
Part No : EGH20CA, EGH20CAZ0C, EGH20CAZAC, EGH20CAZBC, EGH20CAZ0H, EGH20CAZAH, EGH20CAZBH
Series: EG series
Block Type: Square type
Model Size : 20 mm
Load Type: Heavy load
Block Mounting: Mounting from Top
Block: Standard type block
Preload Class: Very Light Preload (Z0), Light Preload (ZA) , Medium Preload (ZB)
Precision code：C,H
| H | Total height | 28 | mm |
| H1 | 6 | mm | |
| N | 11 | mm | |
| W | Block width | 42 | mm |
| B | 32 | mm | |
| B1 | 5 | mm | |
| C | 32 | mm | |
| L1 | 48.1 | mm | |
| L | Block length | 69.1 | mm |
| K1 | 12.3 | mm | |
| K2 | 4.15 | mm | |
| G | 12 | mm | |
| M | M5 | ||
| l | 7 | mm | |
| T | 7.5 | mm | |
| H2 | 6 | mm | |
| H3 | 6 | mm | |
| Mass | 0.24 | kg |
