MGW-C/MGW-H series

linear rail slide linear guide system MGW12C

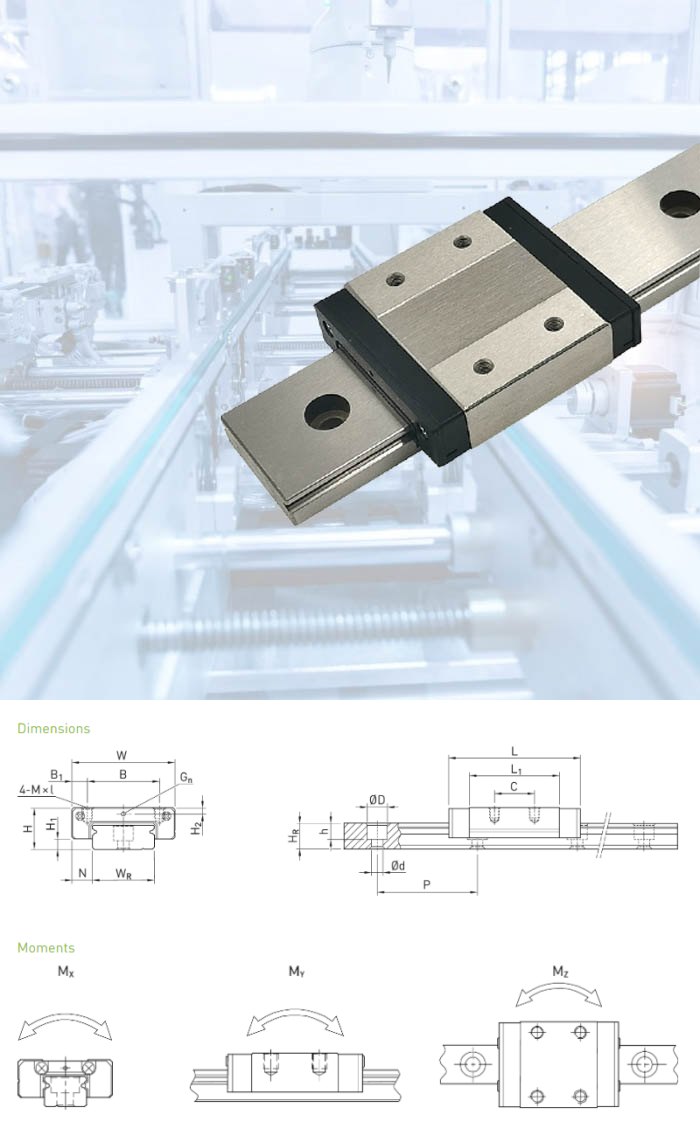

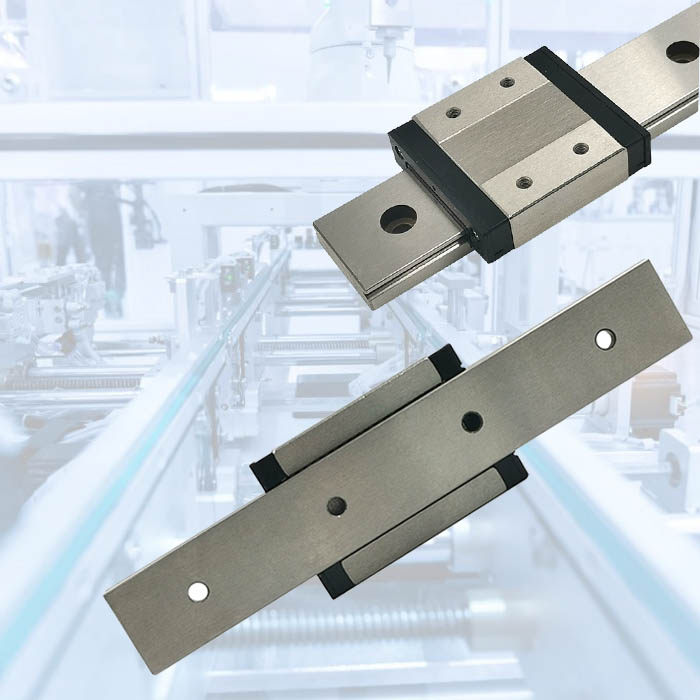

Details of MGW12C

Product name:linear rail slide linear guide system MGW12C

Series:MGW

Size:12

Block No:MGW12C, MGW12CZFC, MGW12CZ0C, MGW12CZ0H, MGW12CZ1C, MGW12CZ1H

Block Type: Standard

Block preload:Light Clearance(ZF), Very Light Preload(Z0),  Light Preload (Z1)

Precision code/Accuracy Classes: C,H

Class Code Preload Accuracy
Light Clearance ZF Clearance 4~10μm C
Very light preload Z0 0 C-P
Light preload Z1 0.02C C-P

Datasheet of MGW12C



H Total height 14 mm
H1   3.4 mm
H1 With bottom seal 2.6 mm
N   8 mm
W Block width 40 mm
B   28 mm
B1   6 mm
C   15
L1   31.3 mm
L Block length 46.1 mm
Gn   Ø2
M   M3 mm
l   3.6 mm
H2   2.8 mm
  Mass 0.07 kg
