Product Description

MGN-C/MGN-H series

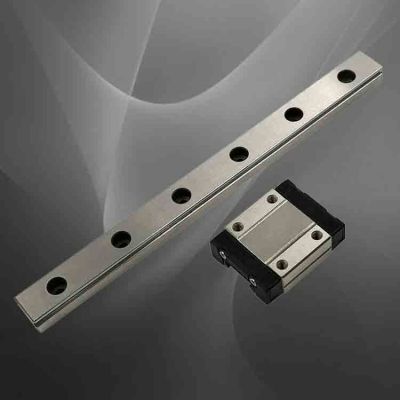

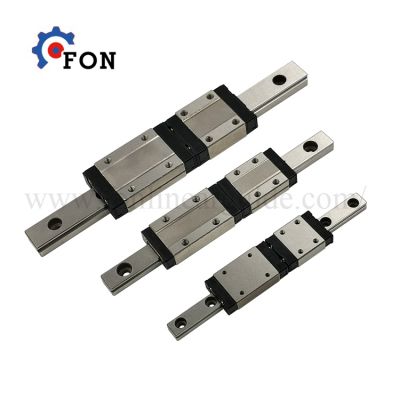

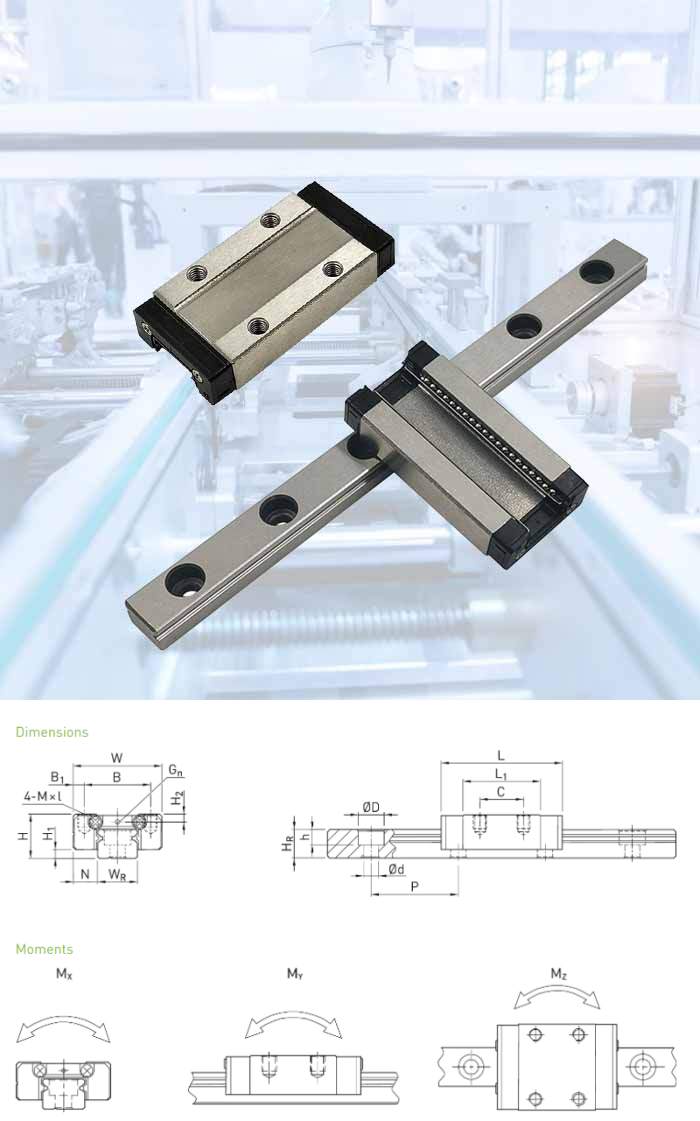

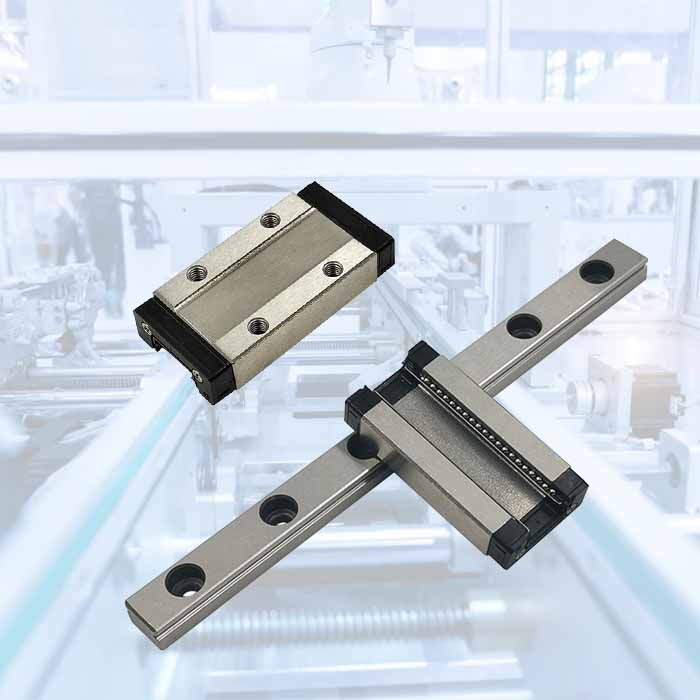

linear guideway carriage block MGN9H

Details of MGN9H

Product name:linear guideway carriage block MGN9H

Series:MGN

Size:9

Block No:MGN9H, MGN9HZFC, MGN9HZ0C, MGN9HZ0H, MGN9H7CZ1C, MGN9HZ1H

Block Type: Long

Block preload:Light Clearance(ZF), Very Light Preload(Z0),  Light Preload (Z1)

Precision code/Accuracy Classes: C,H

Class Code Preload Accuracy
Light Clearance ZF Clearance 4~10μm C
Very light preload Z0 0 C-P
Light preload Z1 0.02C C-P

Datasheet of MGN9H



H Total height 10 mm
H1   2 mm
N   5.5 mm
W Block width 20 mm
B   15 mm
B1   2.5 mm
C   16
L1   29.9 mm
L Block length 39.9 mm
Gn   Ø1.4
M   M3 mm
l   3 mm
H2   1.8 mm
  Mass 0.03 kg
