linear guide rail block MGN5H
linear guide rail block MGN5H

linear guide rail block MGN5H

Product Description

MGN-C/MGN-H series

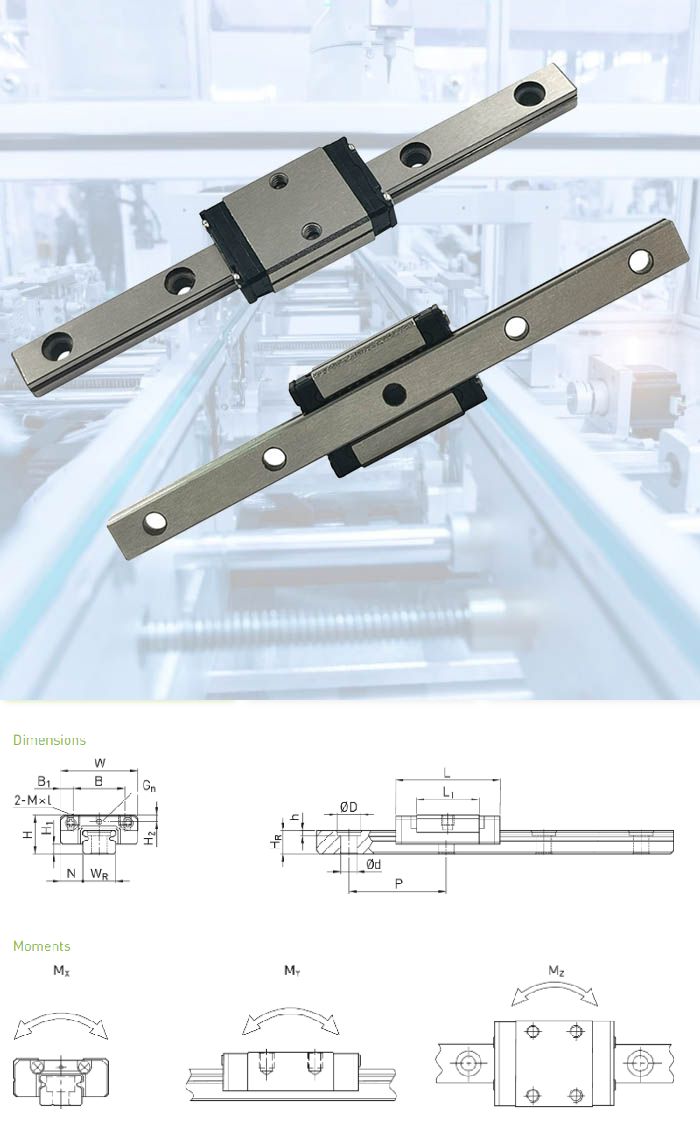

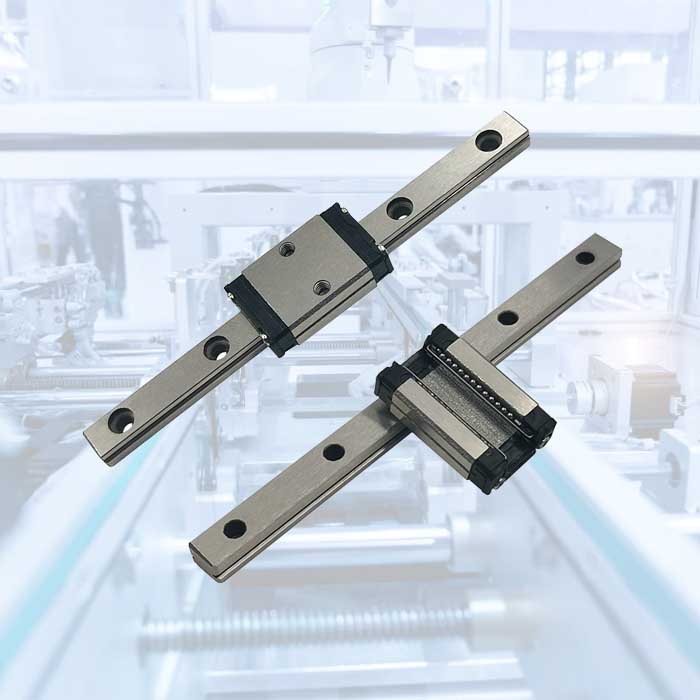

linear guide rail block MGN5H

Details of MGN5H

Product name:linear guide rail block MGN5H

Series:MGN

Size:5

Block No:MGN5H, MGN5HZFC, MGN5HZ0C, MGN5HZ0H, MGN5HZ1C, MGN5HZ1H

Block Type: Long

Block preload:Light Clearance(ZF), Very Light Preload(Z0),  Light Preload (Z1)

Precision code/Accuracy Classes: C,H

Class Code Preload Accuracy
Light Clearance ZF Clearance 4~10μm C
Very light preload Z0 0 C-P
Light preload Z1 0.02C C-P

Datasheet of MGN5H



H Total height 6 mm
H1   1.5 mm
N   3.5 mm
W Block width 12 mm
B   8 mm
B1   2 mm
L1   12.6 mm
L Block length 19 mm
Gn   Ø0.8
M   M2 mm
l   1.5 mm
H2   1 mm
  Mass 0.01 kg
